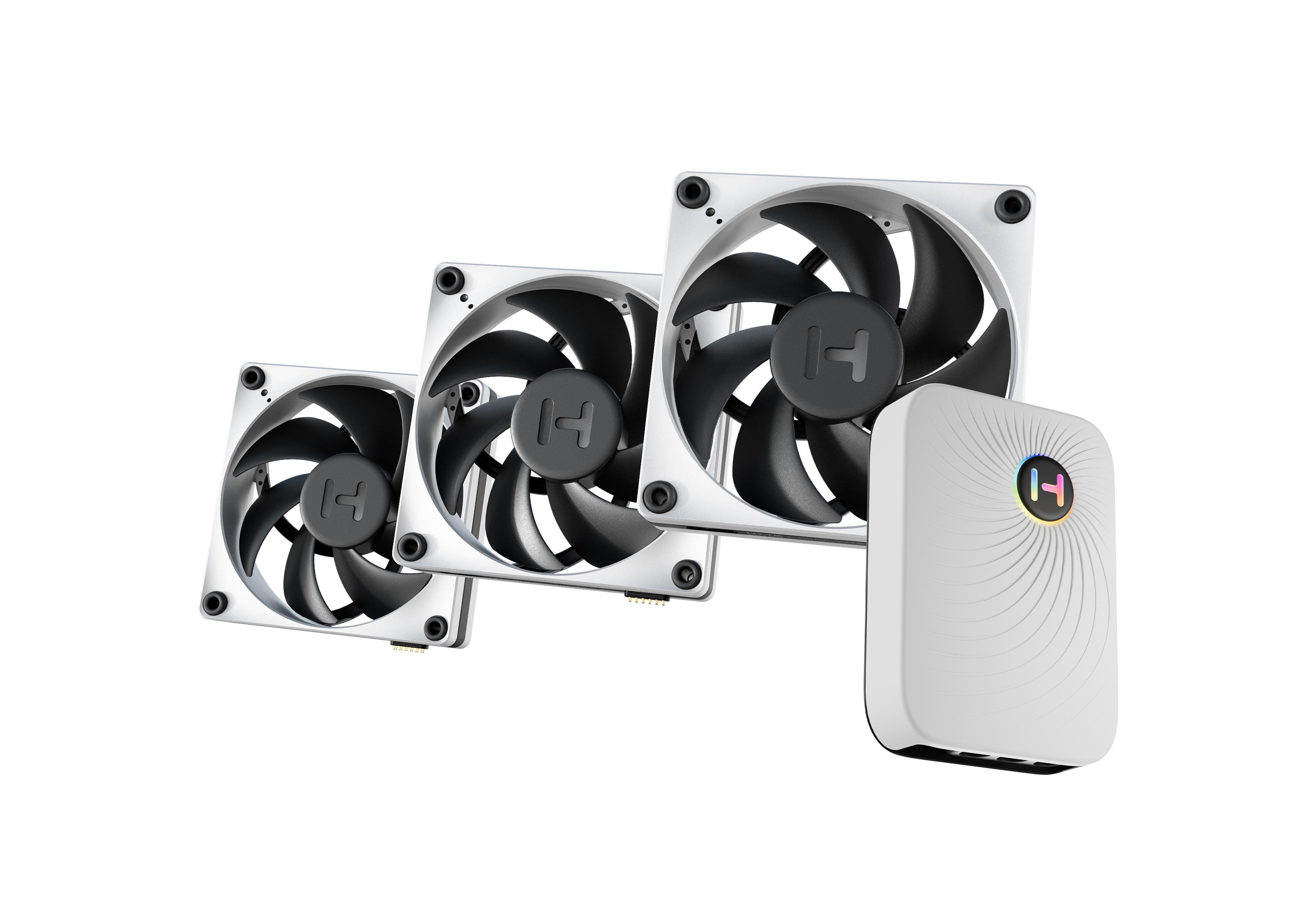

THICC FP12
Digital Processor Cooling
THICC FP12
Digital Processor Cooling
- Cooling unlocks potential
- Fans should be seen and not heard
- THICC: Technology Harnessing Innovative Chonk for Cooling
- Powerful onboard sequential bit processor handles an array of cooling, lighting, and sensor channels across the node network
- Fits in any 2.5” mounting location with ease
- Helps organize I/O routing and promotes clean cable management
- Utilizes HYTE’s revolutionary new digital hardware interface, giving it the capability to support up to 18 devices on a single port or up to 54 devices across 3 channels with Nexus Link AmpScale.
Product Features
32mm THICC
120x120x32mm design excels as both a case and radiator fan with the best performance-to-noise ratio on the market
Fiberglass Reinforced Liquid Crystal Polymer
LCP supercharges fan blades with exceptional rigidity, durability, and aerodynamics
Dynamically Adjustable 0 - 3,000 RPM Fan Speed
Delivers a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure
Zero RPM Fan Mode
Completely stops the blades from spinning for silent operation under light workloads
Nexus Link Secondary Node
Connects sequentially via Nexus Link Type-M, along with legacy 4-pin PWM support for wide compatibility
Tech Specs
MSRP
$79.99 (3 Pack)
Fan Dimensions
120 x 120 x 32 mm
Fan Speed
0 – 3,000 RPM
Current
0.1A/12V @1000 RPM, 0.2A/12V @2000 RPM, 0.8A/12V @3000 RPM
Air Flow
105.8 CFM
Static Pressure
8.14 mm-H2O
Noise Level
<10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor
Fan Blade Material
Fiberglass Reinforced Liquid Crystal Polymer (LCP)
Fan Connector
Nexus Link Type-M
Additional Sensors
Thermal + Positioning
Included Accessories
12x Case Fan Screws, 12x Radiator Fan Screws, 2x Nexus Link Type-M to Type-M Cables (300 mm), 1x Nexus Link Type-C to Type-M Cable (600 mm), 1x Nexus Link Type-M to Type-C Cable (600 mm), 1x Nexus Link Type-C to 4-Pin PWM Cable
Software Support
HYTE Nexus
Warranty
6 Years
Sku
FAN-HYTE-FP12-BW-3, FAN-HYTE-FP12-BW-3NP
Nexus Portal NP50: (Only Included With Optional Bundle)
Connection Channels
3x Nexus Link Type-C, 1x 4-Pin PWM
Maximum Devices – Single Channel
18
Maximum Devices – All Channels
54
Maximum Current – Single Channel
8A/12V
Maximum Current – All Channels
15A/12V
Maximum PSU Power Draw
Up to 180W depending on the number of connected Nexus Link devices
ARGB LEDs
6 qRGB Pixels (Also Function As Status Indicators)
Input Connections
USB 2.0 Header, 6-Pin PCIe Power
Software Support
HYTE Nexus
Warranty
3 Years
