THICC Q80 Trio
Digital Processor Cooling
THICC Q80 Trio
Digital Processor Cooling
- Cooling unlocks potential
- Performance over patents
- Cables are just super gross, so we got rid of like all the cables
- THICC: Technology Harnessing Innovative Chonk for Cooling
- Fill that THICC sized void in your Y70
- “You gon' jump if A. G. made it”
Product Features

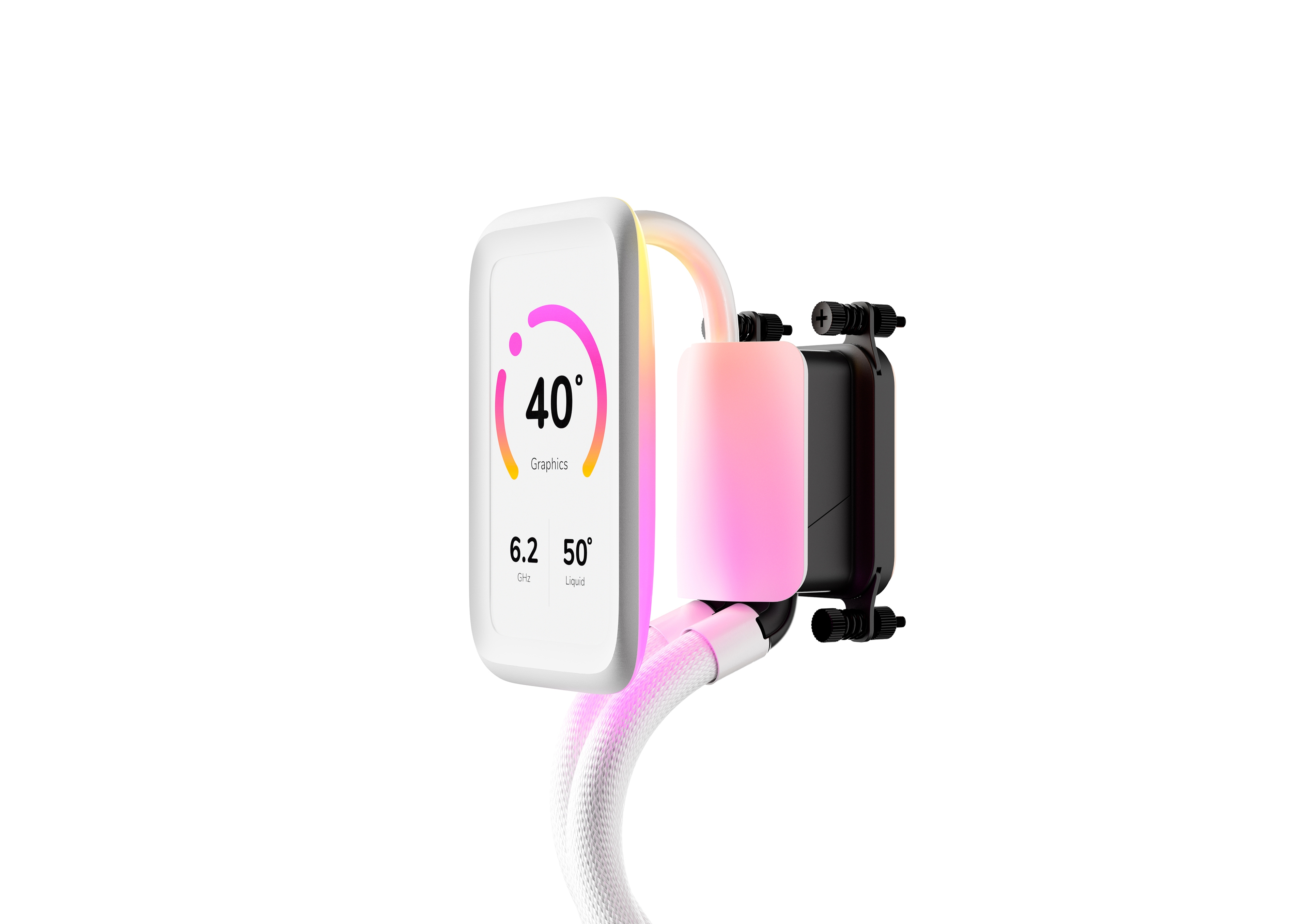

5” Ultraslim Display
Super luminous screen offers unmatched digital immersion with fluid motion graphics and media playback
Synchronous RGB Lighting
42 ARGB LEDs cast a mesmerizing glow of color across your motherboard
Floating Hinge Design
Find the perfect angle for your setup with 180° of adjustable swivel
Ginormous Cooling
360mm long and 52mm THICC ginormous heat exchanger and supersized 2nd gen copper cold plate that maximize thermal capacity and thermal transfer
Dual Harmonic Pumps
Efficiently circulate liquid in silence with polished ceramic bearings for increased pump reliability
Pre-Applied Thermal Goop
Keeps your CPU ice cold with exceptional thermal conductivity and increased resistance to pump-out
THICC FP12 Trio
Omnidirectional aesthetics with unibody PBT construction for enhanced structural rigidity
Fiberglass Reinforced LCP Blades
Supercharges performance with up to 105.8 CFM of airflow and 8.14 mm-H2O of static pressure
Designed for Y70
Perfect fit down to the last millimeter along with an included LS10 qRGB light strip for additional ambient lighting via Nexus Link Type-C
Nexus Link Primary Node
Control an entire system’s worth of cooling and lighting with up to 36 daisy chained devices across 2 channels
Powered by HYTE Nexus 2.0
Intelligent cooling and extensive lighting control with a plethora of brand new faces for unlimited screen customization
Tech Specs
CPU Compatibility
AMD AM5, AM4, TR6* - Intel LGA 1851, 1700, 1200, 115X, 20XX* - *Contact Support for Additional Mounting Kits
Heat Exchanger Dimensions
120 x 408 x 52 mm

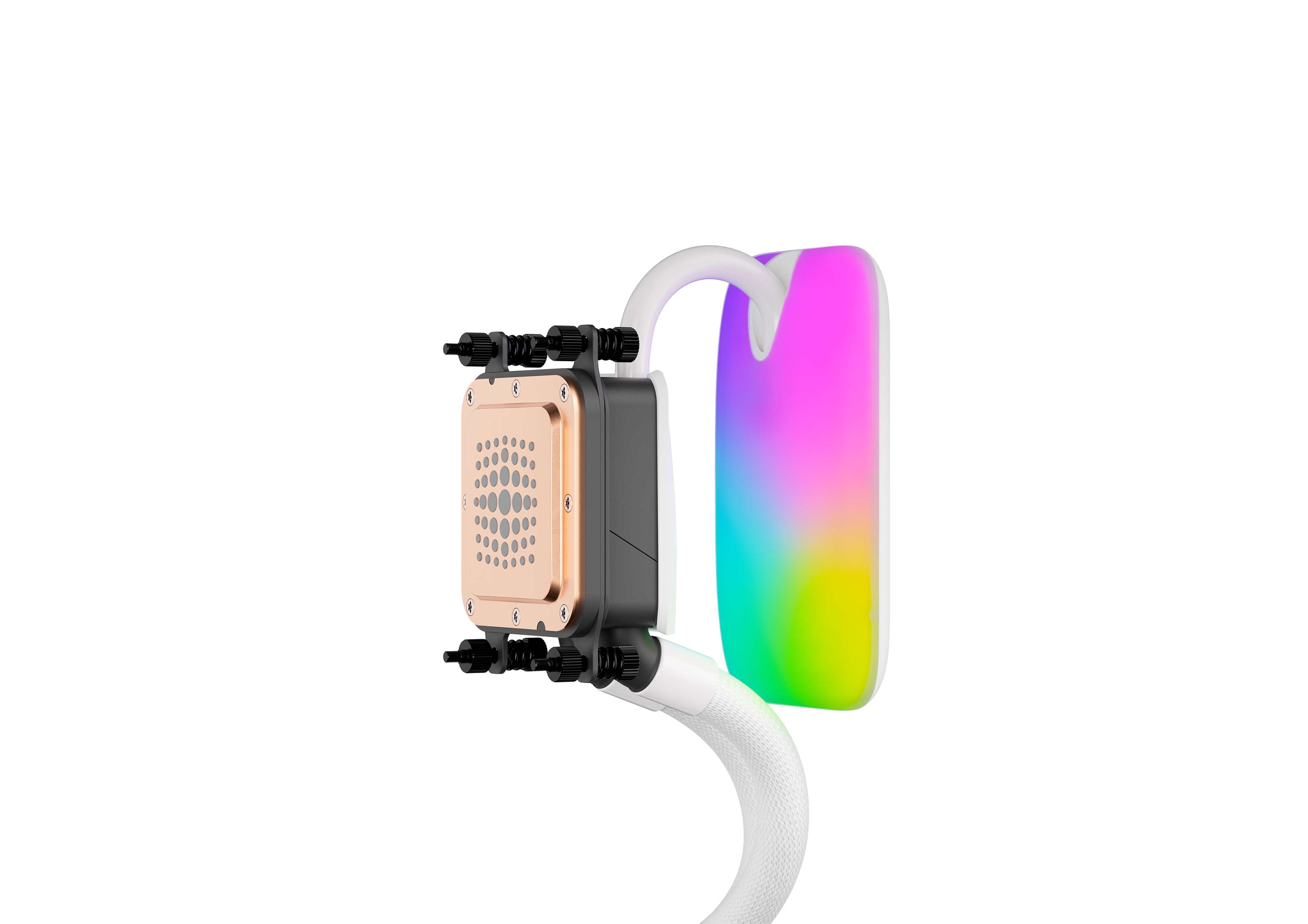

Cold Plate Dimensions
72 x 68.8 mm
Cold Plate Material
Copper
Sleeved Tubing Length
520 mm
Total CPU Block + LCD Screen Height
105 mm
Fans
THICC FP12 Trio
Fan Dimensions
120 x 360 x 32 mm
Fan Speed
0 – 3,000 RPM
Air Flow
105.8 CFM
Static Pressure
8.14 mm-H2O
Noise Level
10.0 - 47.3 dBA
Bearings
Fluid Dynamic
Fan Blade Material
Fiberglass Reinforced Liquid Crystal Polymer (LCP)
Fan Frame Material
Polybutylene Terephthalate (PBT)
Fan Connector
Nexus Link Type-M
Nexus-Link Channels
1x Type-C, 1x Type-M
LCD Screen
5 Inch – 720p – 60Hz IPS Display
LCD Hinge
180-Degree Double-Hinged Floating Spout
LCD Brightness
300 nits
RGB Lighting
42 ARGB LEDs
Pump
HYTE Dual Harmonic, 2,000 – 4,400 RPM
System-On-A-Chip
1.3GHz Quad-Core CPU + 2GB DDR4 RAM + 500MHz GPU
Storage
32GB eMMC
Co-Processor
32-Bit ARM Cortex-M4
Input Connections
USB 2.0 Header, PWM, 6-Pin PCIe Power
Included Accessories
AMD Mounting Kit for AM5, AM4 - Intel Mounting Kit for LGA 1851, 1700, 1200, 115X - Fan Screws
Nexus Powered
Yes
Warranty
6 Years
