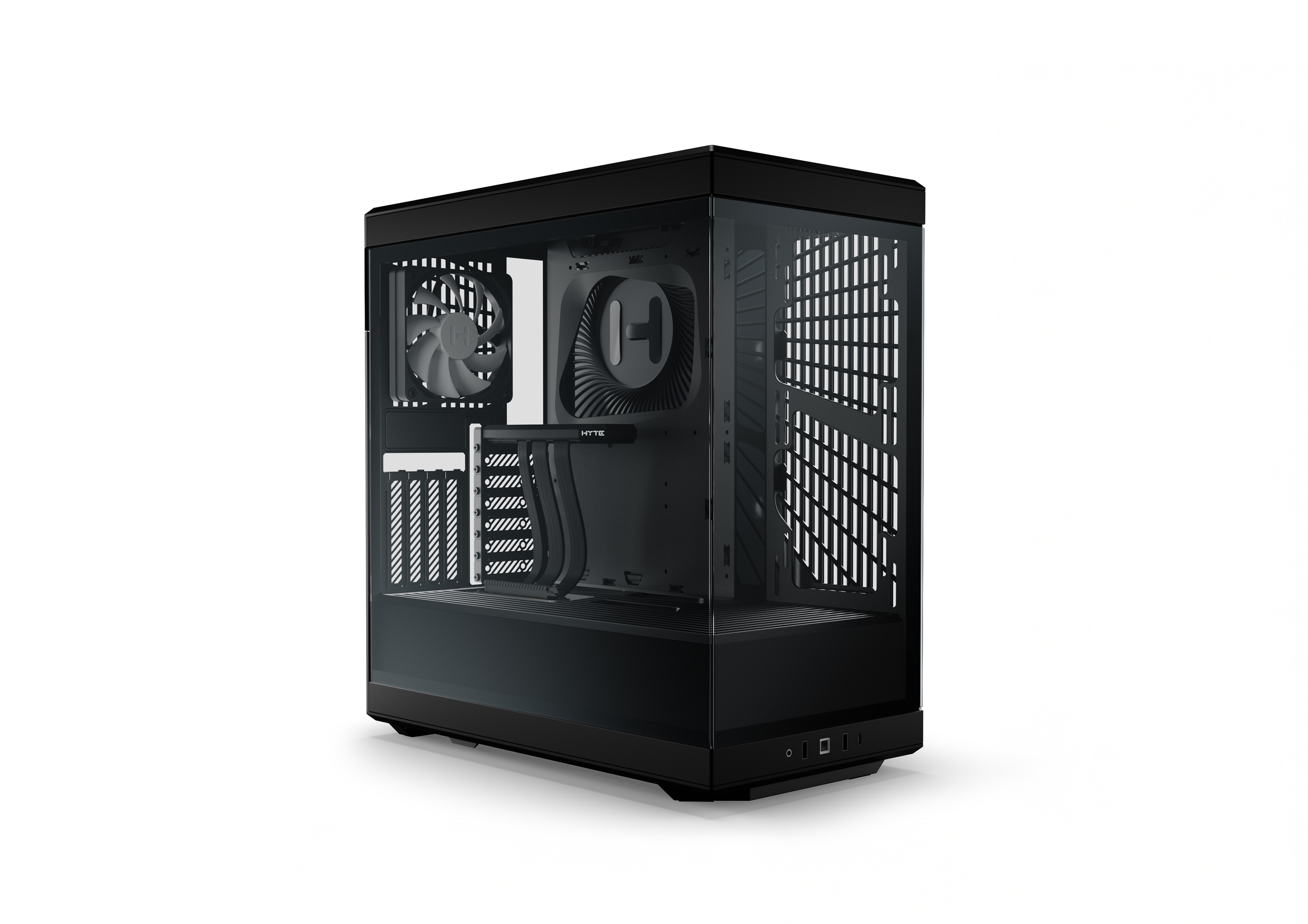

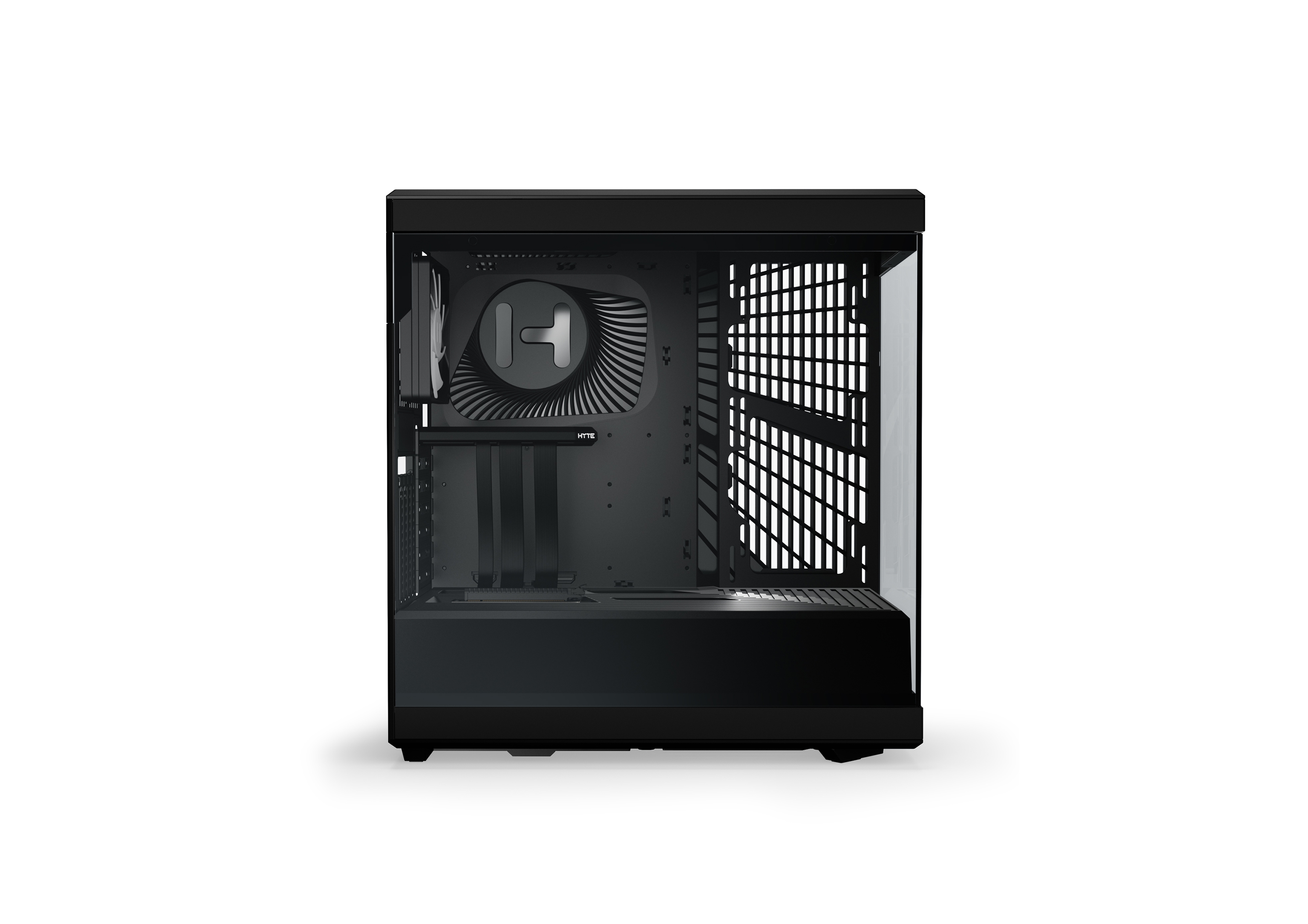

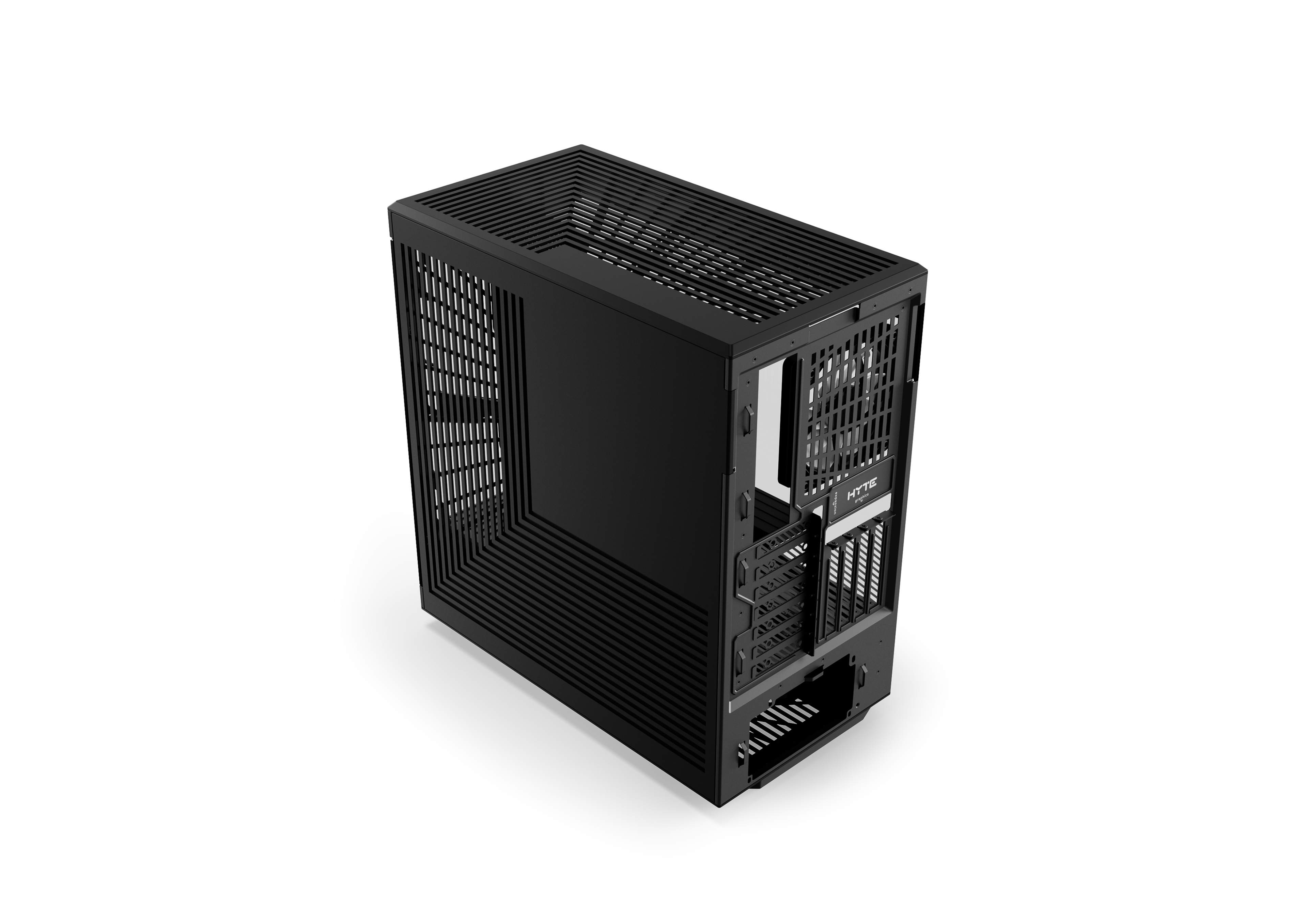

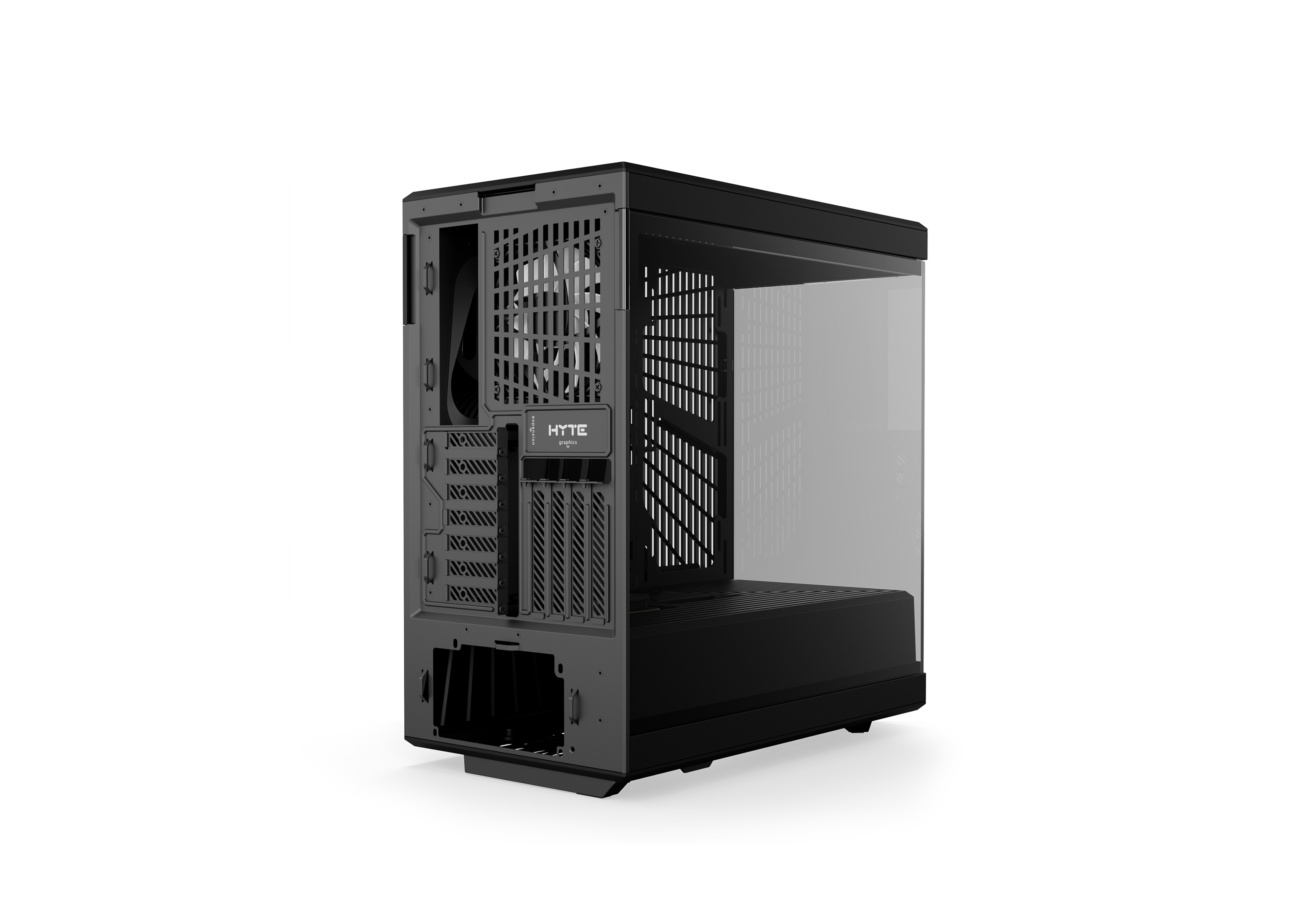

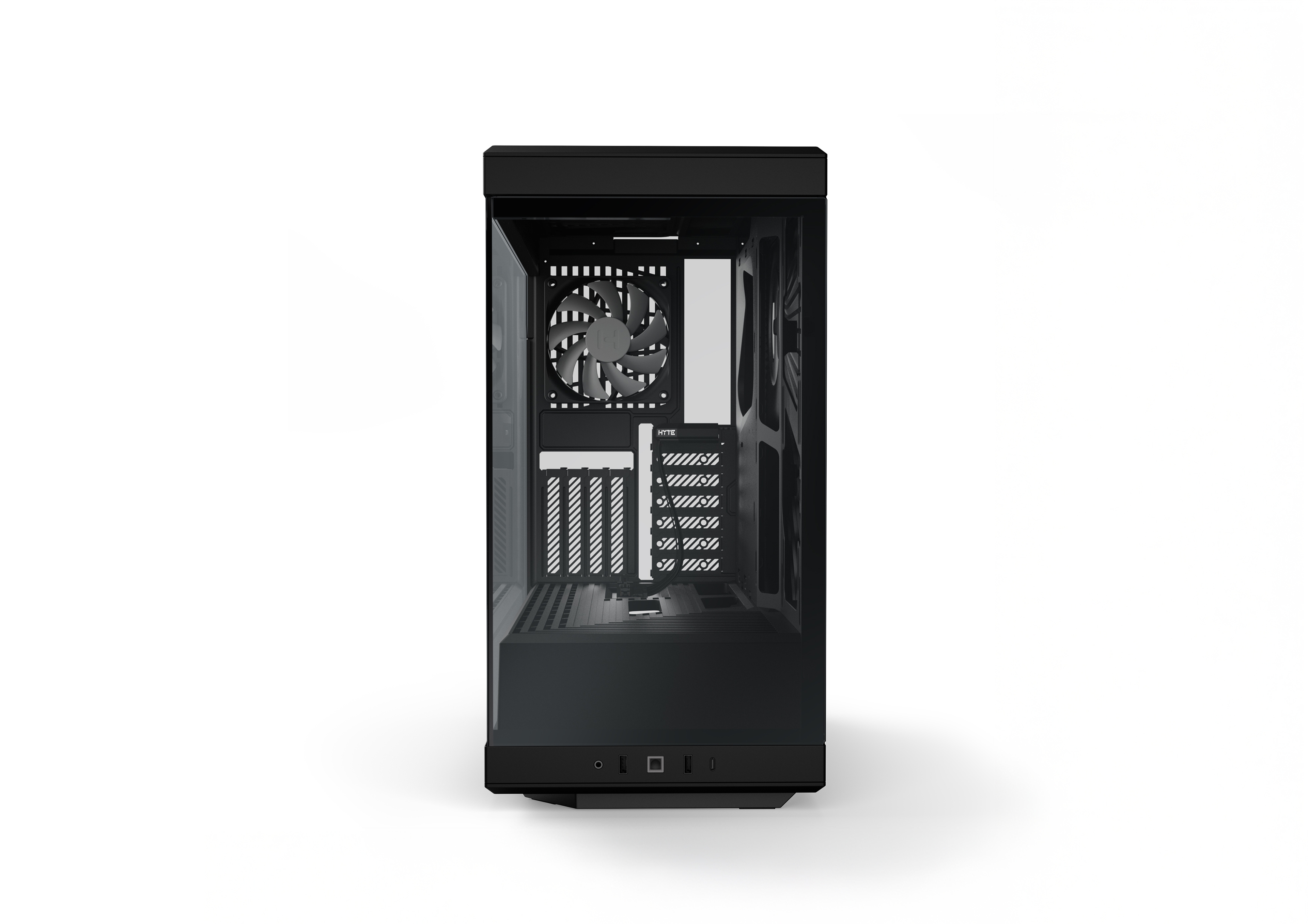

Y40 Refurbished
S-Tier Aesthetic Case
Y40 Refurbished
S-Tier Aesthetic Case
Grade A: Our Grade A refurbished products offer exceptional value, delivering like-new performance with minimal wear and tear. Each unit has been rigorously tested to ensure full functionality, with only minor cosmetic imperfections that are barely noticeable. Ideal for those who want the quality and reliability of a new product at a fraction of the cost.
--
Designed From Every Dimension
The all-new Y40 is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.
Product Features

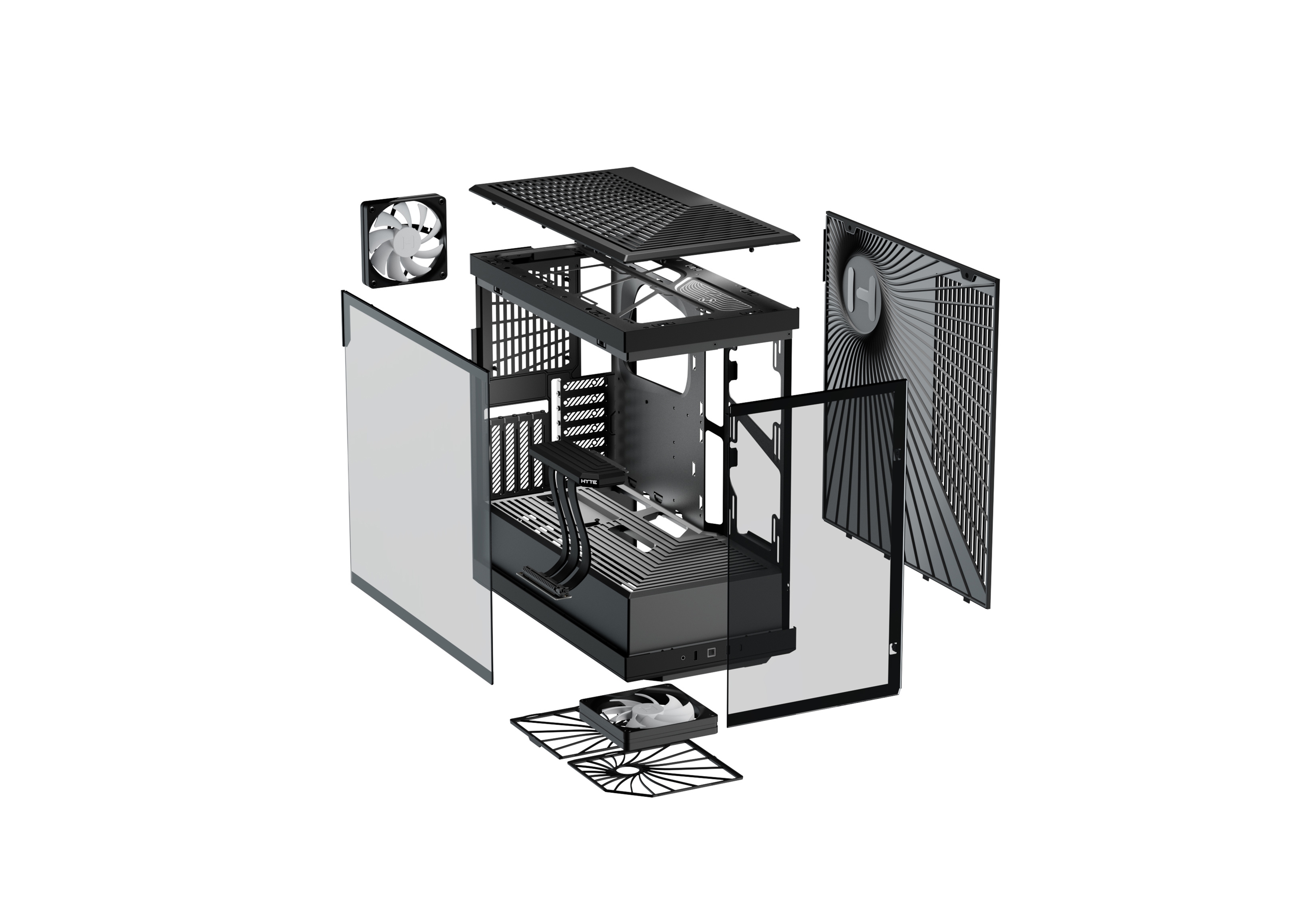

Multi-Dimensional Design
Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.
Ginormous Vertical Graphics Support
Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.

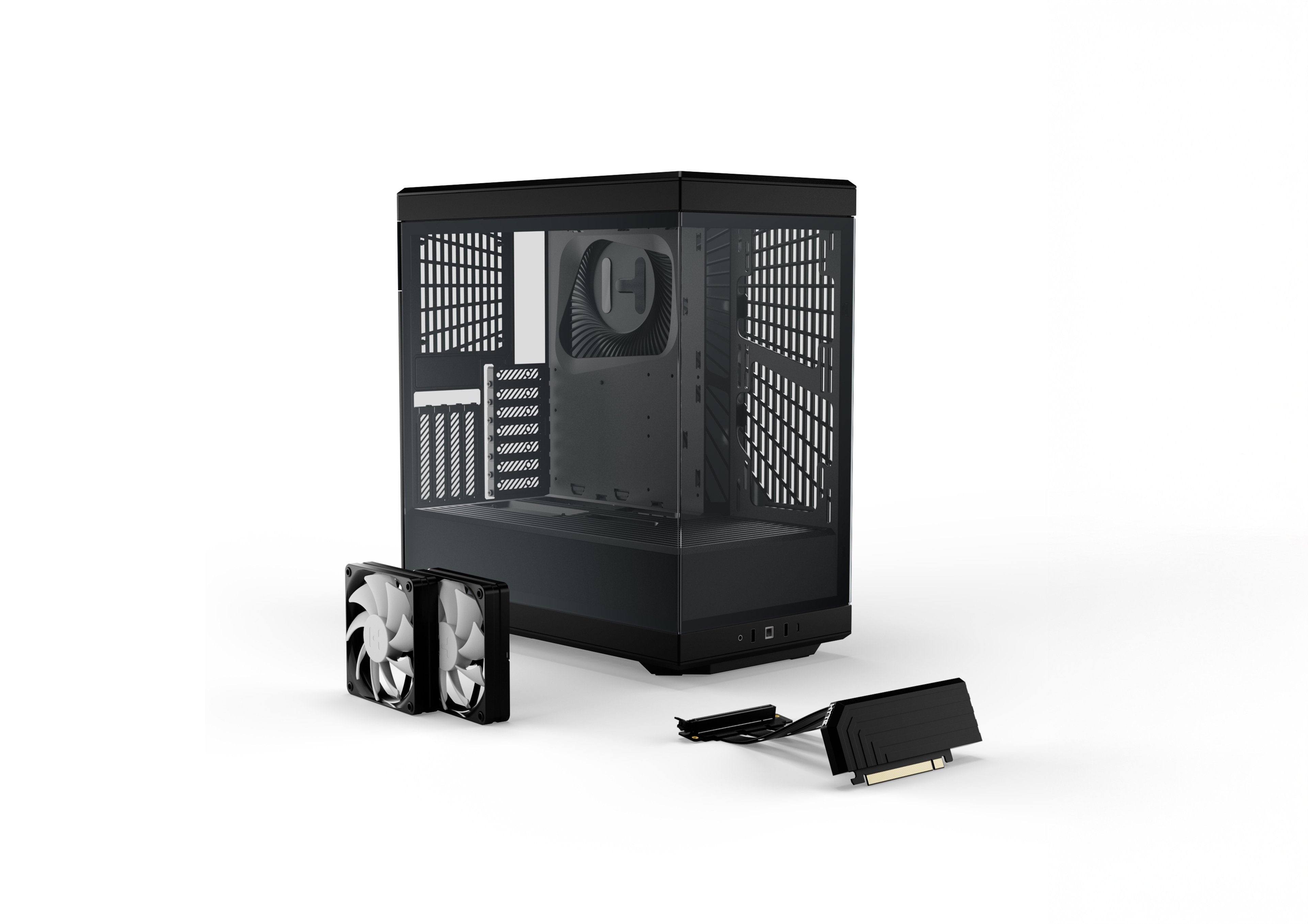

Included Luxury PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.
Cooling
Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.
Tech Specs
Type
ATX Mid Tower
Volume
50L
Case Dimensions
439mm x 240mm x 472mm
Motherboard Support
ITX, mATX, ATX
Power Supply
ATX up to 224mm in length
Video Card Max Dimensions
422mm length, 94mm height (80mm height or less recommended for best cooling)
Fan Support (Side)
2x 120mm/140mm
Fan Support (Top)
Top: 3x 120mm
Fan Support (Rear)
1x 120mm (1x 120mm, 1300 rpm included)
Fan Support (Bottom)
1x 120mm/140mm (1x 120mm, 1300 rpm included)
Radiator Support (Side)
120, 140, 240, 280mm up to 120mm thick
Radiator Support (Top)
120, 240, 360mm
Radiator Support (Rear)
120mm
CPU Cooler Height
183mm
Storage
1 x 3.5" HDD or 2 x 2.5" SSD
Expansion Slots
4 + 6 half-height
Sku
CS-HYTE-Y40-BW, CS-HYTE-Y40-B, CS-HYTE-Y40-BR, CS-HYTE-Y40-WW
Interfaces
PCI Express Riser Cable
4.0 x 16 (included)
Front USB 3.0
2
Front USB 3.2 Type-C
1
Audio/Mic Jack
1
Dust Filters
Top, Side, Bottom (x2)
RGB Lighting
None
Customer Reviews
Y40 Snow White
very goood
moon
Almost perfect
This was my first time building the PC myself. The case is stunning and was super easy to get along with, with some exceptions: 1. The instructions need to have words not just very bad illustrations, it added more confusion than anything and it probably took me an hour to figure out what some of the case connectors were for and where they should go as a noob. 2. Please vent the bottom of the main compartment better, the bottom fan is almost useless when 90% of the bottom isn't vented. Also I'd like to see the bottom fan moved to the top of the underside compartment, would make managing cables from the PSU a bit easier and logically just makes more sense imo. 3. Please make the pcie riser fully removable, it would make getting the motherboard in and plugging in connectors at the bottom of the motherboard MUCH easier. Was one of my biggest points of annoyance in the whole build. Overall though I'm very pleased so far, I have unfortunately not been able to test thermals since I've been waiting for my CPU cooler to arrive for the 7950X3D, but once that has arrived and if I'm able to update this post I'll be sure to add my experience with a 4090 and a 7950X3D inside such a small case.
CJ
Y40
Love the design but I think fans should be placed under Shroud Not on the bottom of case but I'll tool it out to fit 2 fans under gpu grommets would be nice even if I had to buy them separately but for 150 for a case with 4.0 riser included its a steal
