Y70 Touch Infinite enables meaningful digital interaction with an integrated 2.5K 5-point multi-touch capacitive LCD panel, delivers next-generation gaming experiences with massive 4-slot vertical graphics, and unlocks maximum performance with ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.
- 688 x 2560 (2.5K) Resolution
- 60Hz Refresh Rate
- 5-Point Multi-Touch
- 183 PPI
- Powered by HYTE Nexus
- 3-Piece Panoramic Glass
- Dual Chamber Interior
- 4 Different Colors
- Included color-matched luxury PCIE 4.0 x 16 riser
- Optimized Iconic Y-Series Ventilation
- 360mm Top (68mm Thick) and Side (125mm Thick) Radiator Support
- Cold Floor Cooling (32mm Thick)
- 10 Total Fan Capacity
- Helpful Labels
- Reusable Velcro Straps
- Floating Storage Sleds
- Tactile Blue Power Switch

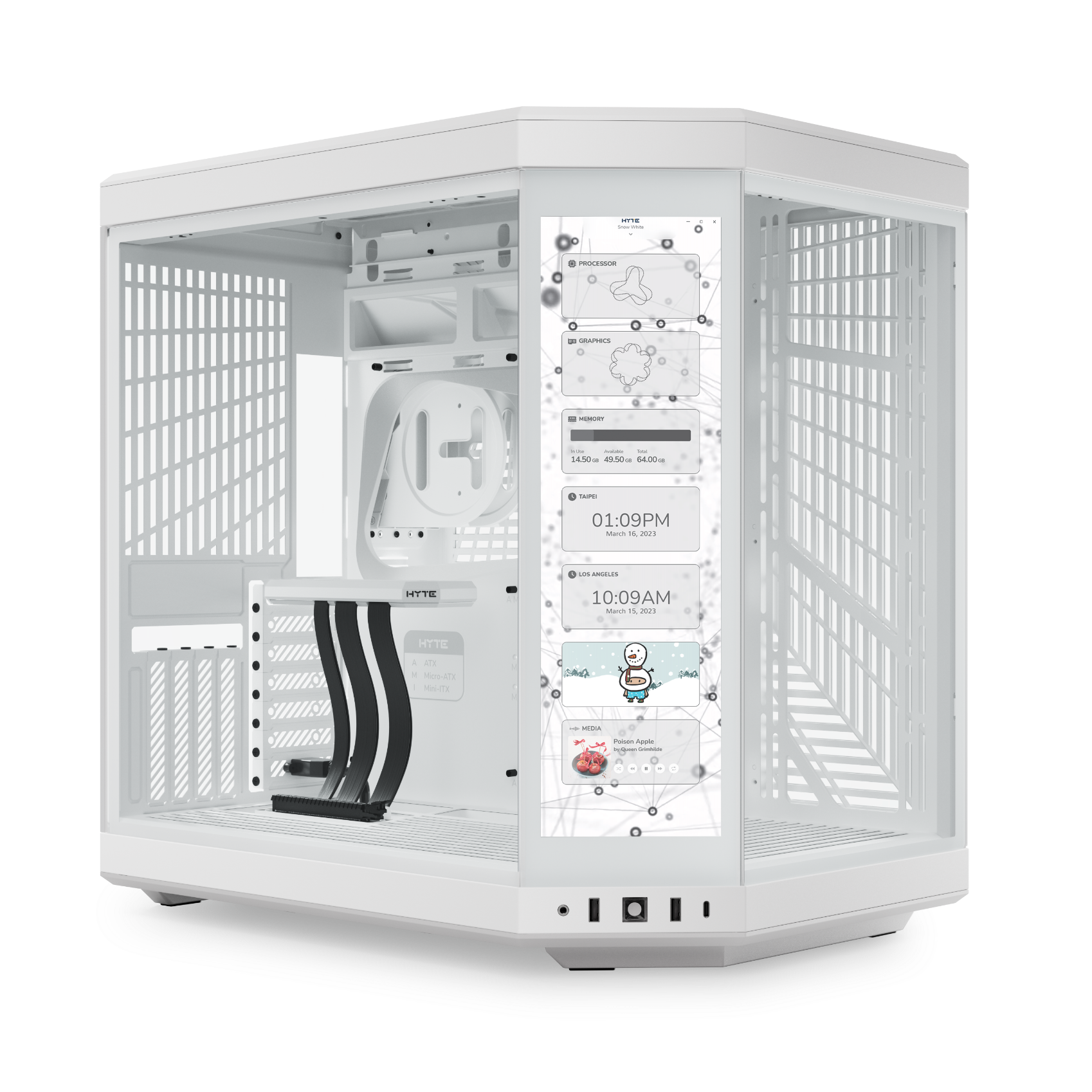

Integrated Touchscreen
Pioneering meaningful digital interaction with the best display ever in a case
14.5” 688 x 2560 (2.5K) 60Hz capacitive touchscreen delivers an insanely crisp and buttery smooth visual experience
5-point multi-touch capability unlocks a magnitude of possibilities with extensive screen customization powered by HYTE Nexus
Integrated into the case chassis structure as a core part of delivering a true modern PC DIY experience
Meticulously Crafted From Every Dimension
Included: PCIE 4.0 Cable
An included PCIE40 4.0 x 16 Luxury Riser Cable supports the latest and greatest graphics cards with a color-matched canopy for uninterrupted visual flow
Our Coolest Case Yet
Y70Ti inherits a similar airflow design to its younger sibling with an even wider range of ginormous cooling capacity.

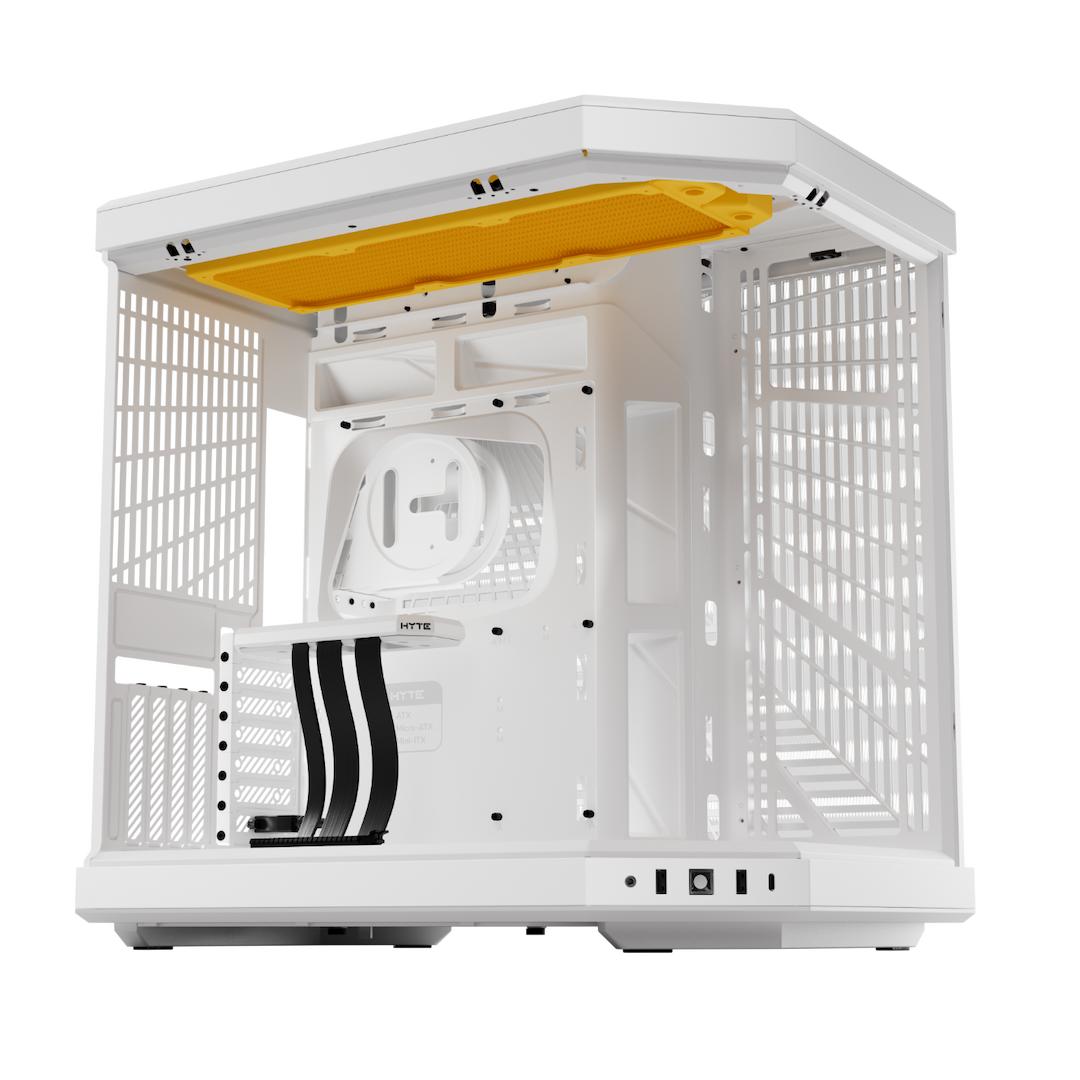

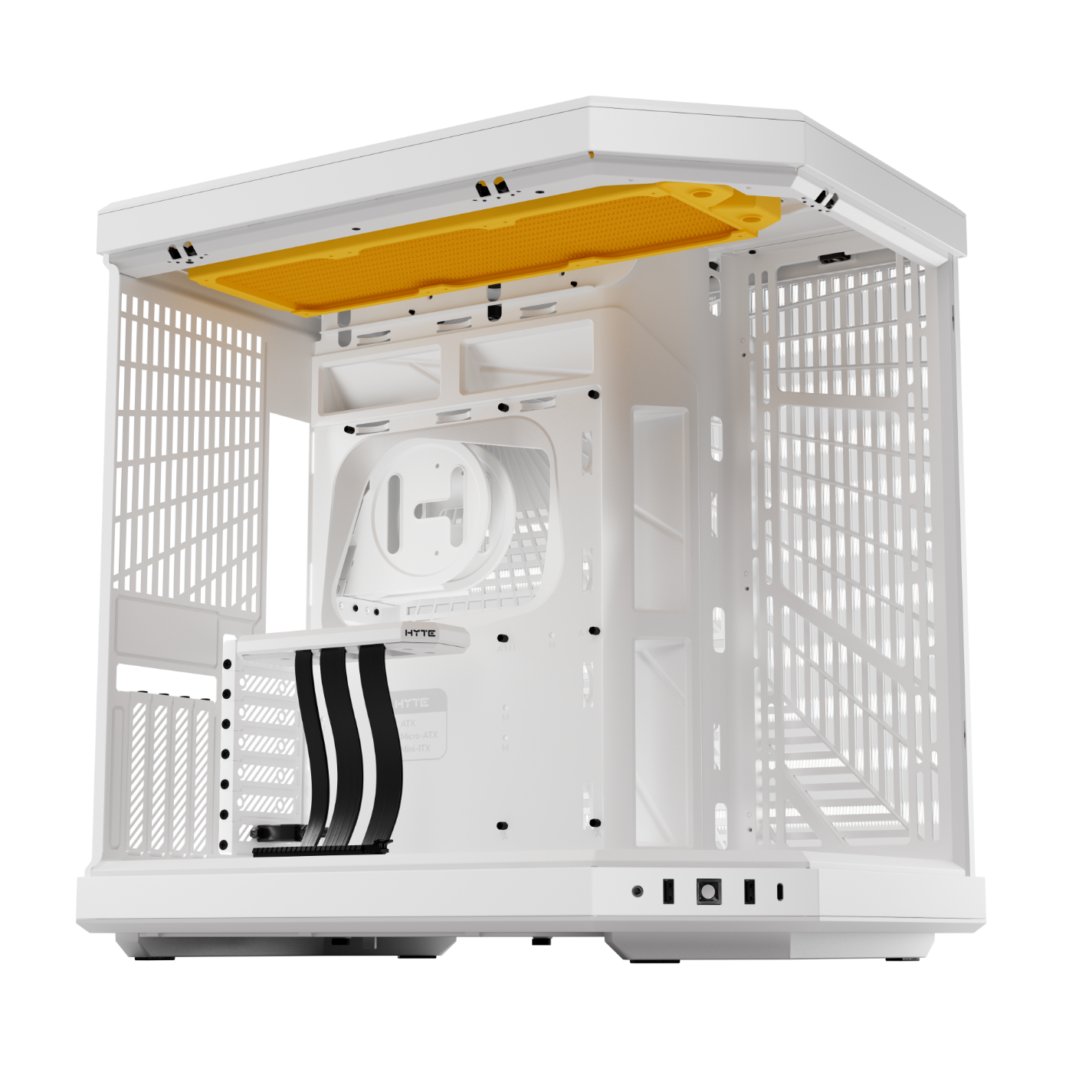

Ceiling Mount - Radiator Support
360mm long 68mm thick
- Y70Ti’s adjustable top mount can fit up to a 360mm long and 68mm super thick radiator for some of the beefiest dual radiator setups imaginable

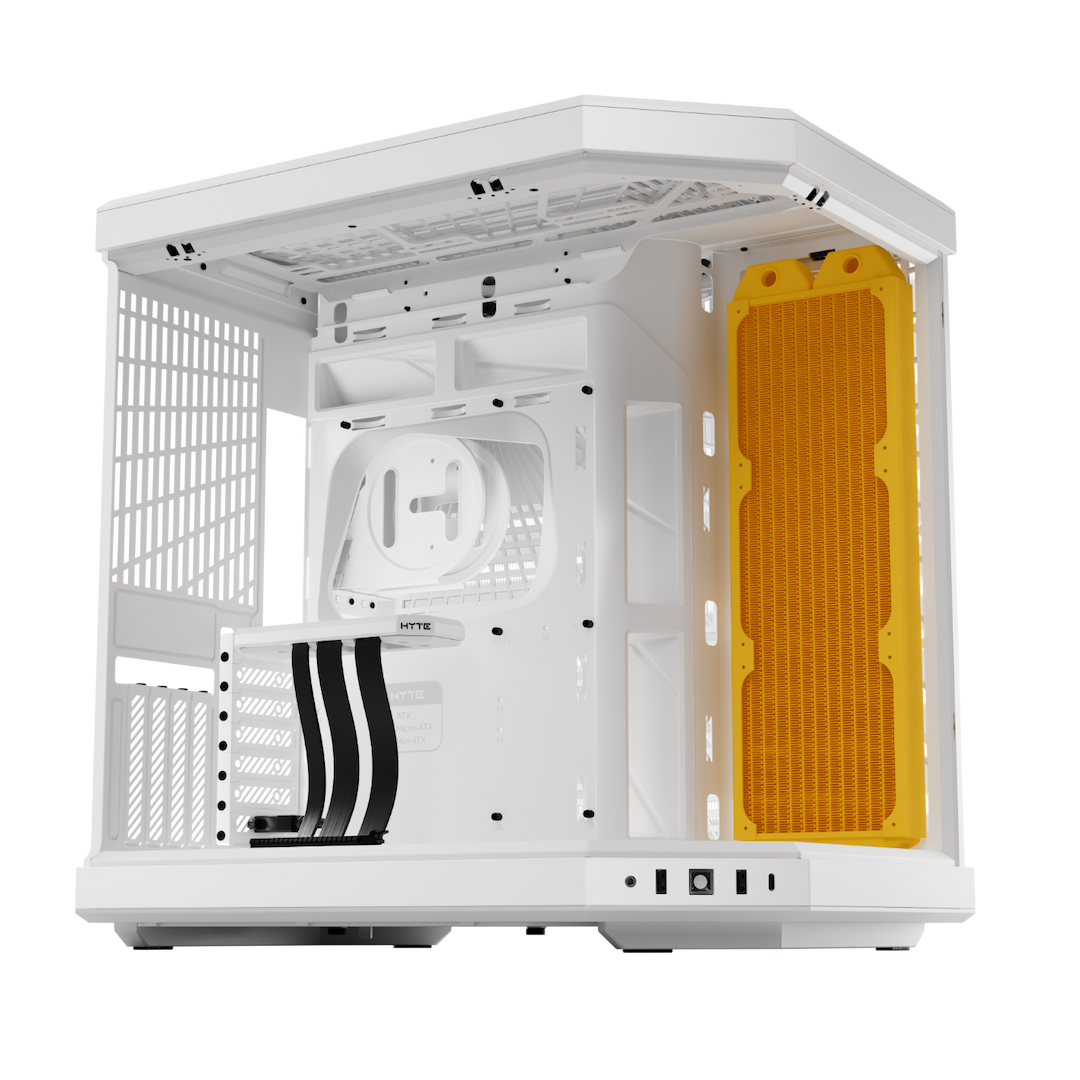

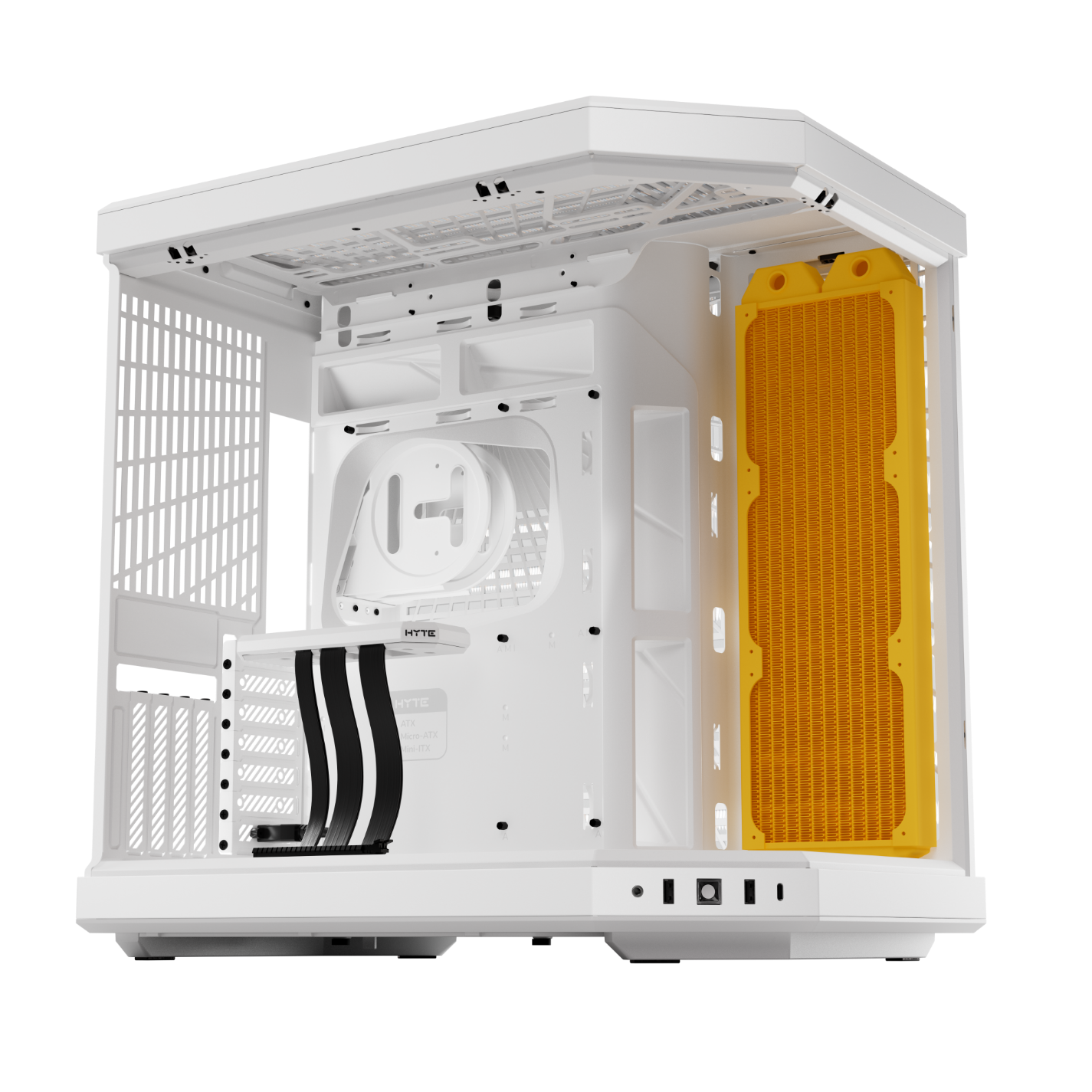

Side Mount - Radiator Support
360mm long 125mm thick
- Y70Ti’s side mount can fit up to a 360mm long and 125mm ultra thick radiator enabling massive cooling capacity and space for custom loop builds

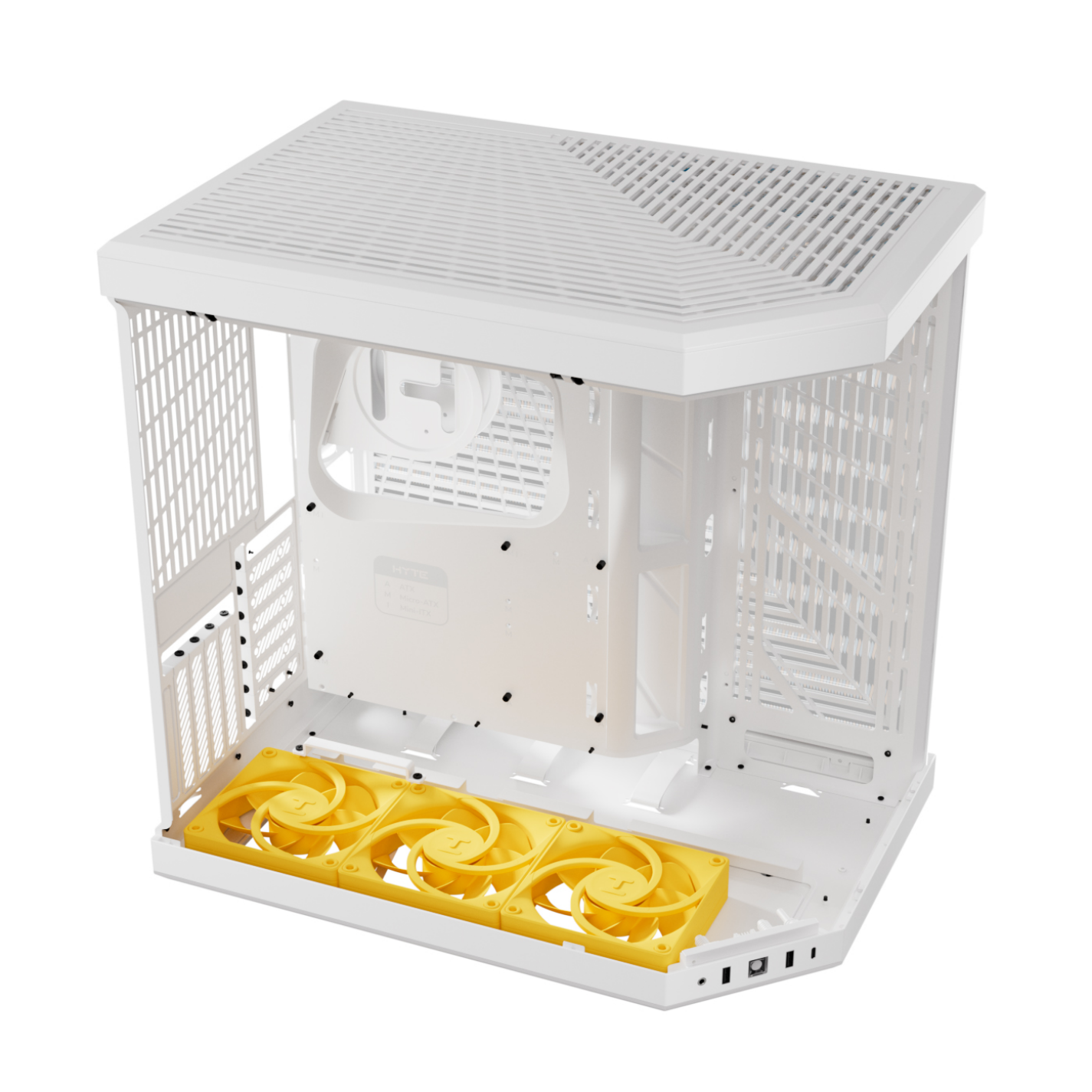

Cold Floor Cooling
3x120mm or 2x140mm
- Y70Ti's cold floor cooling directs airflow from a trio of 120mm or duo of 140mm fans up to 32mm thick straight into the GPU
Optimal Airflow Configuration
Maximize the Y70Ti’s airflow with a layout that takes full advantage of the 10 total fan capacity
A High-Quality Building Experience
Rewarding design for those who take a thoughtful approach to builds and appreciate the finer details
Tool-free Accessibility
Y70Ti’s top and side panels are easily removeable without any tools or thumbscrews for quick access and system maintenance
Removeable Glass Panels
Enthusiasts seeking to maximize the cooling potential of their chassis can take off the 3-piece panoramic glass for a hybrid open frame design
Extensive Cable Management Space
Meticulously placed routing channels and tie down points in the Y70Ti ensure that the rear of the case looks just as beautiful as the front
Express Yourself

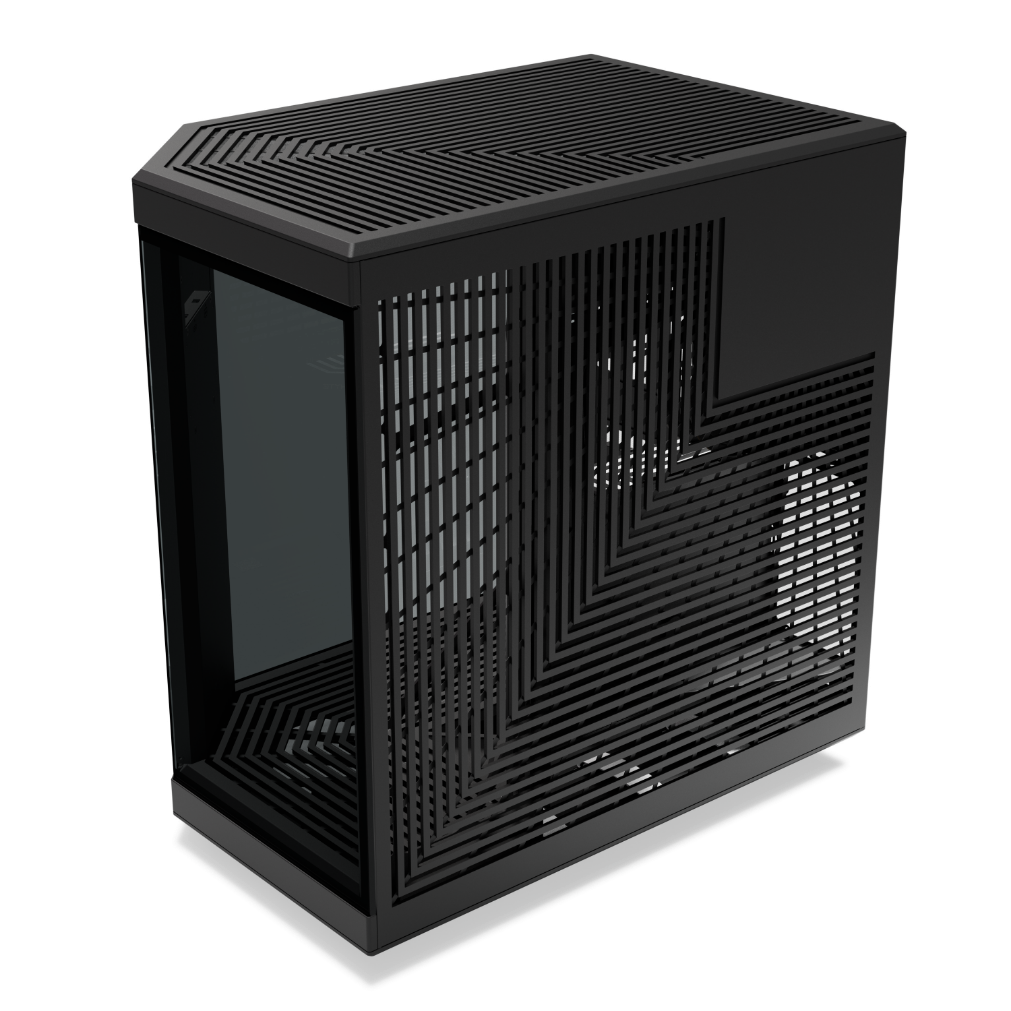

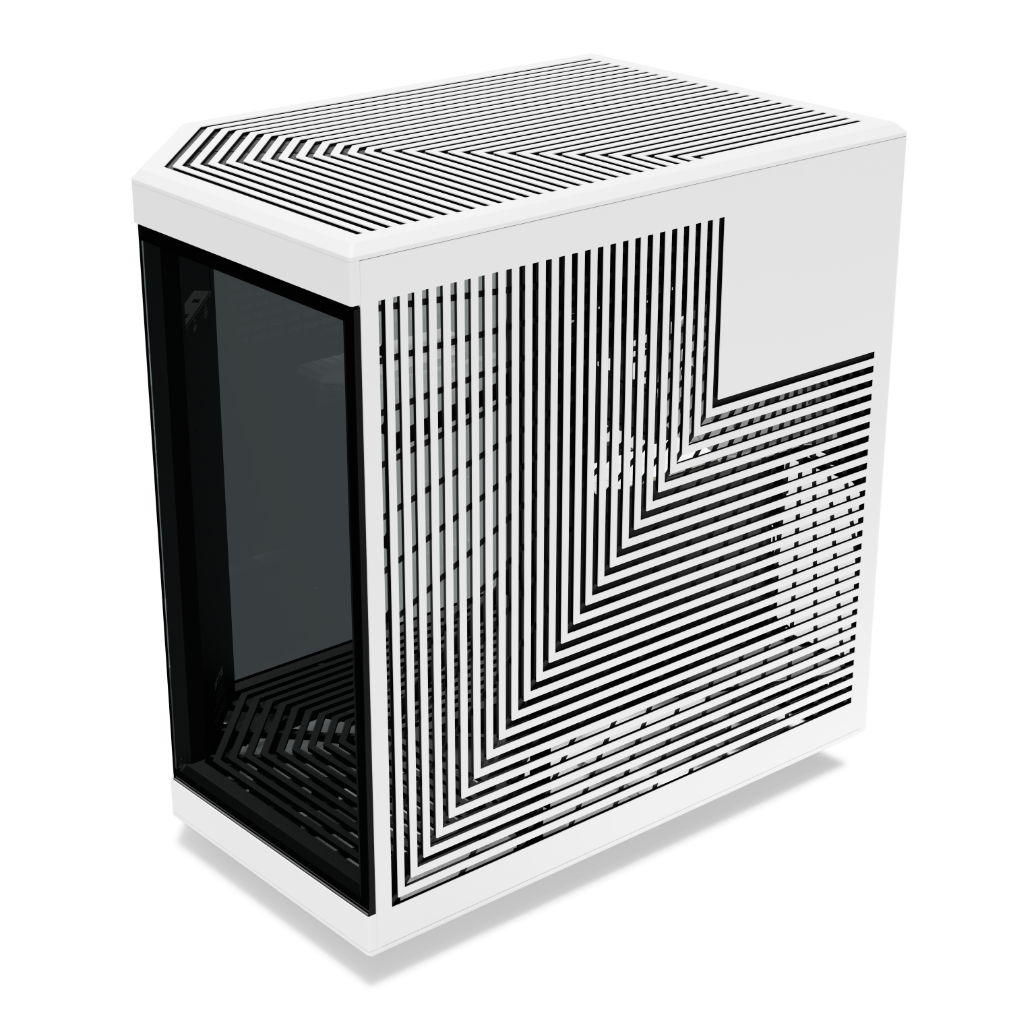

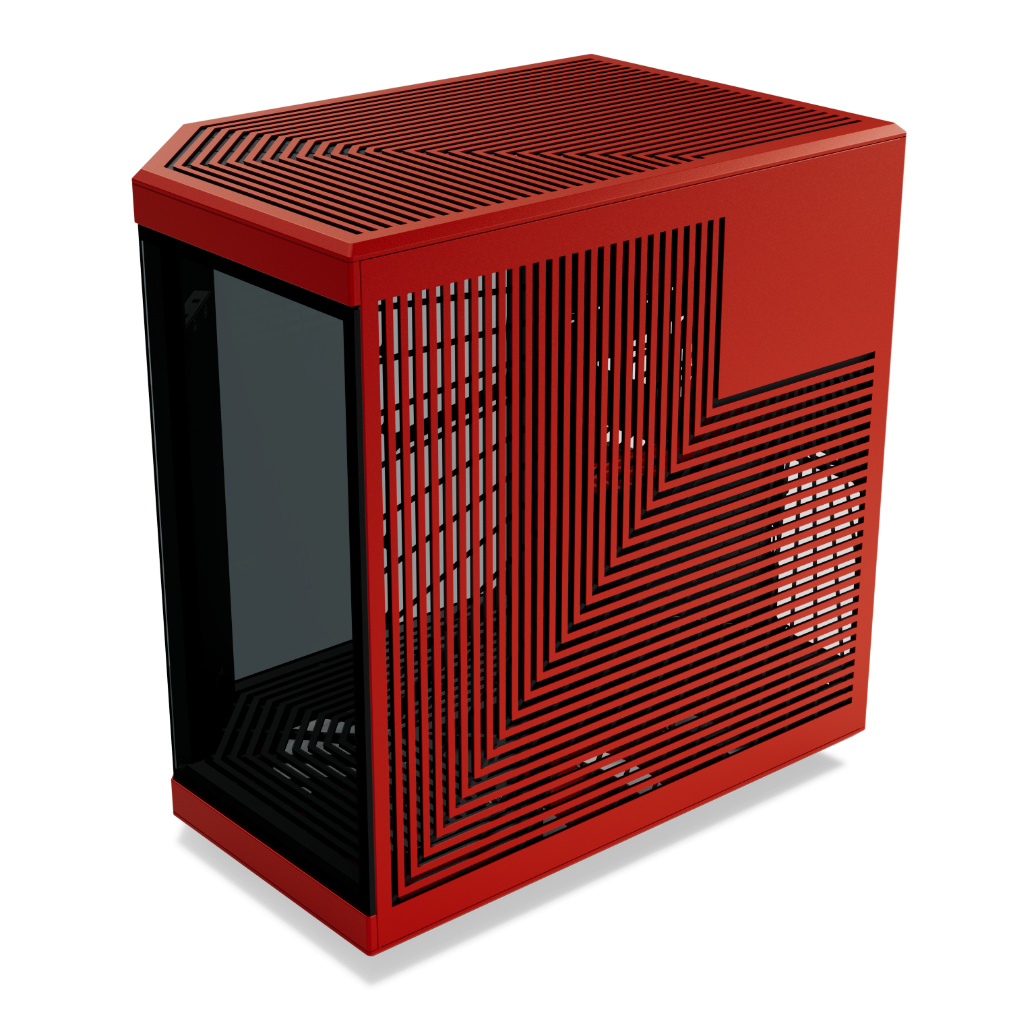

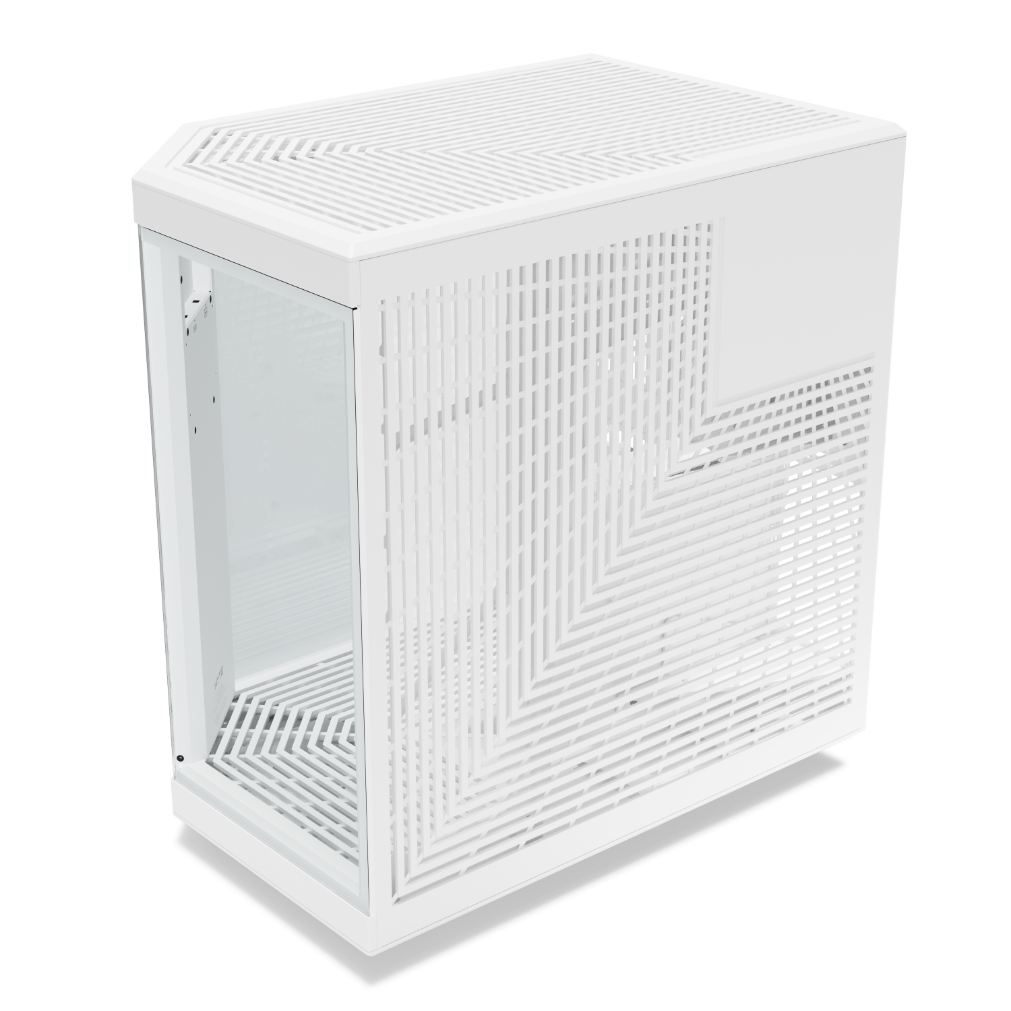

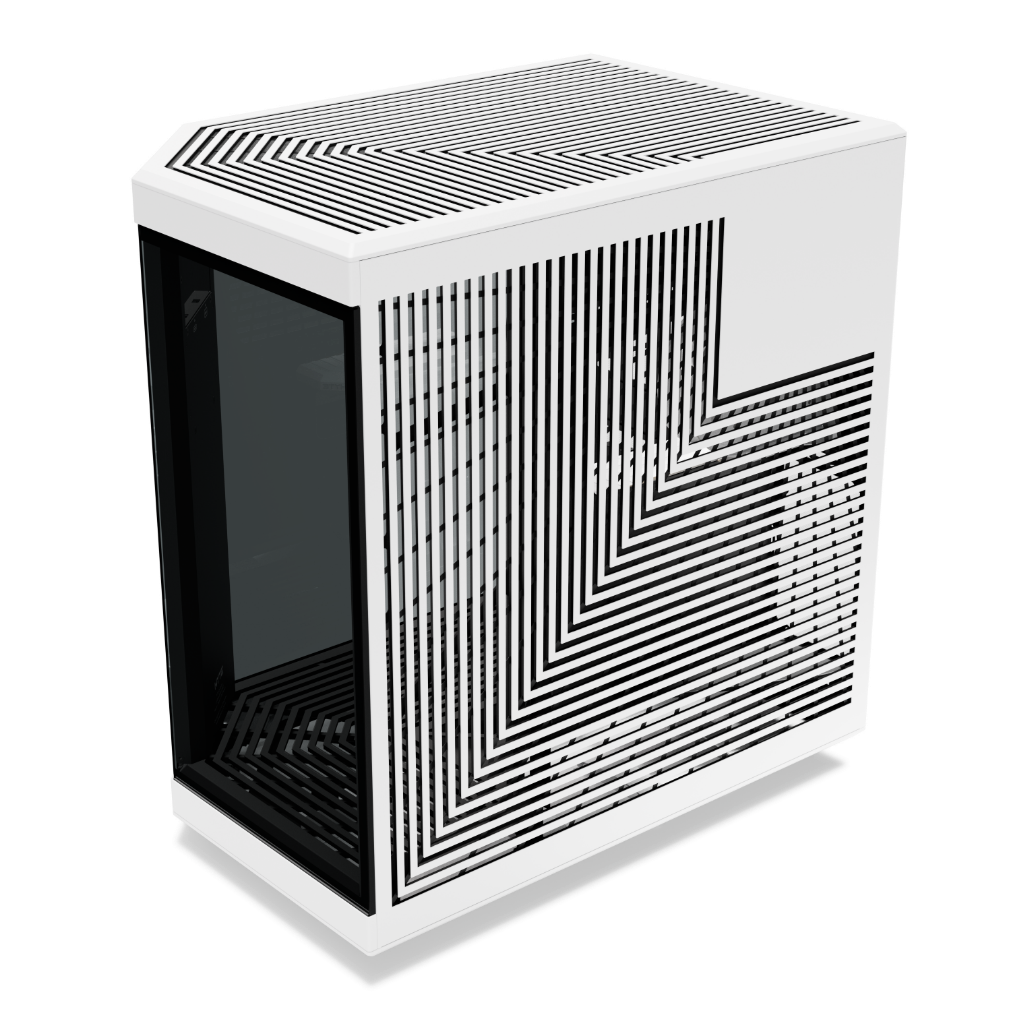

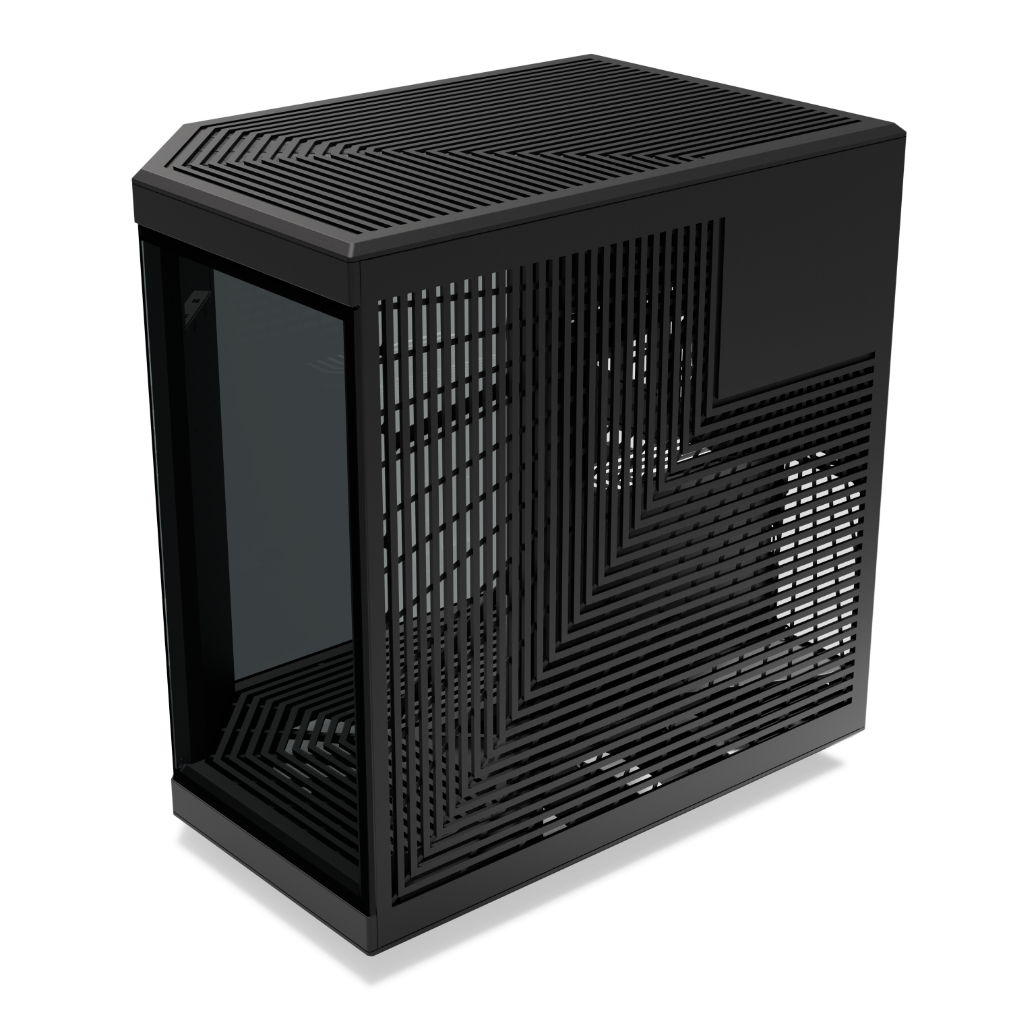

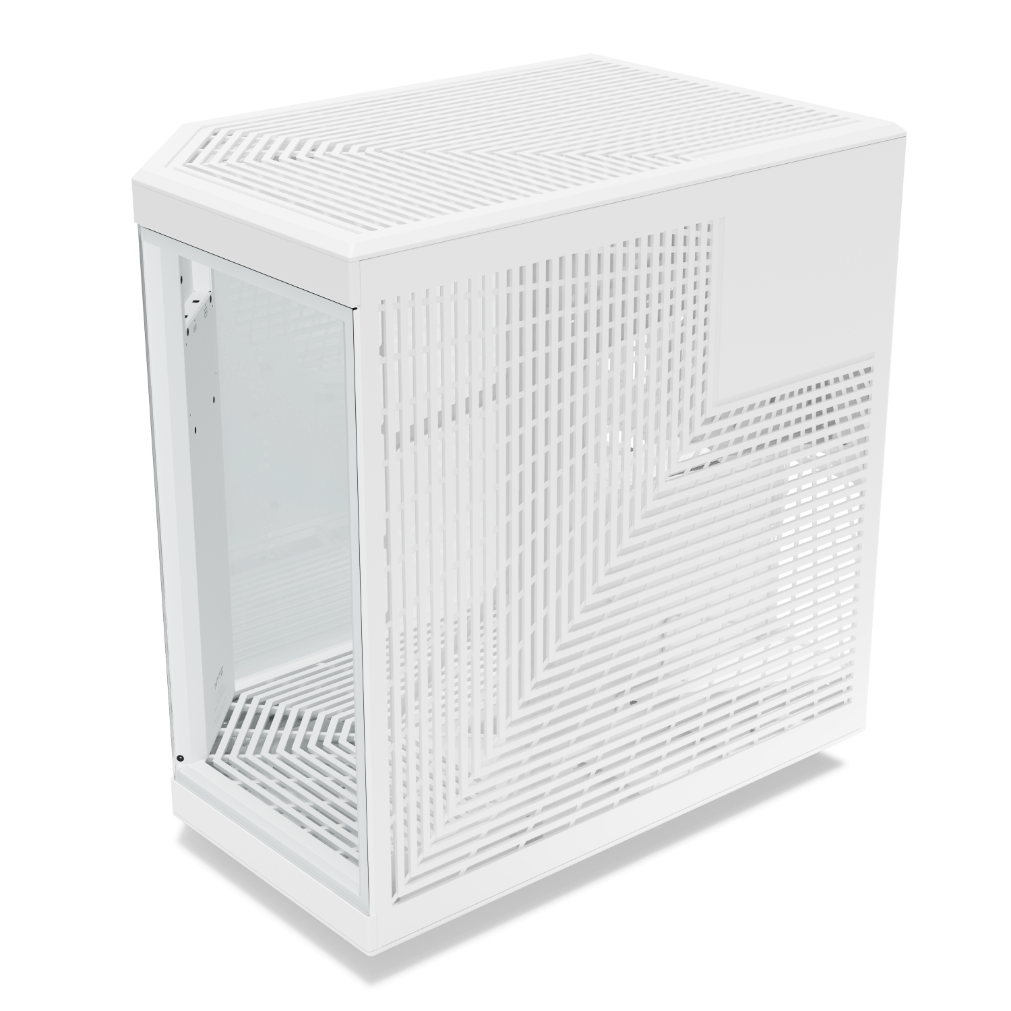

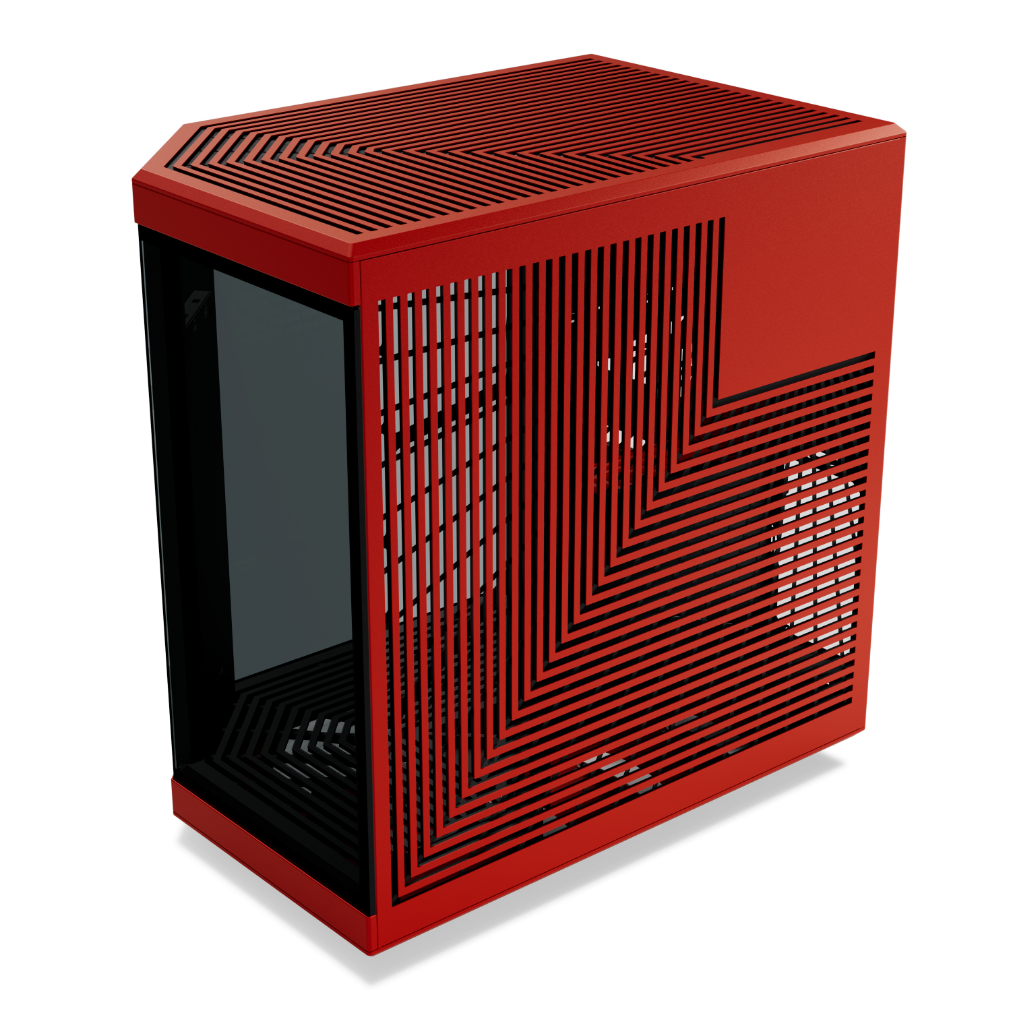

Complete your dream Y70Ti setup with one of 4 unique colorways: snow white, white, red, and black

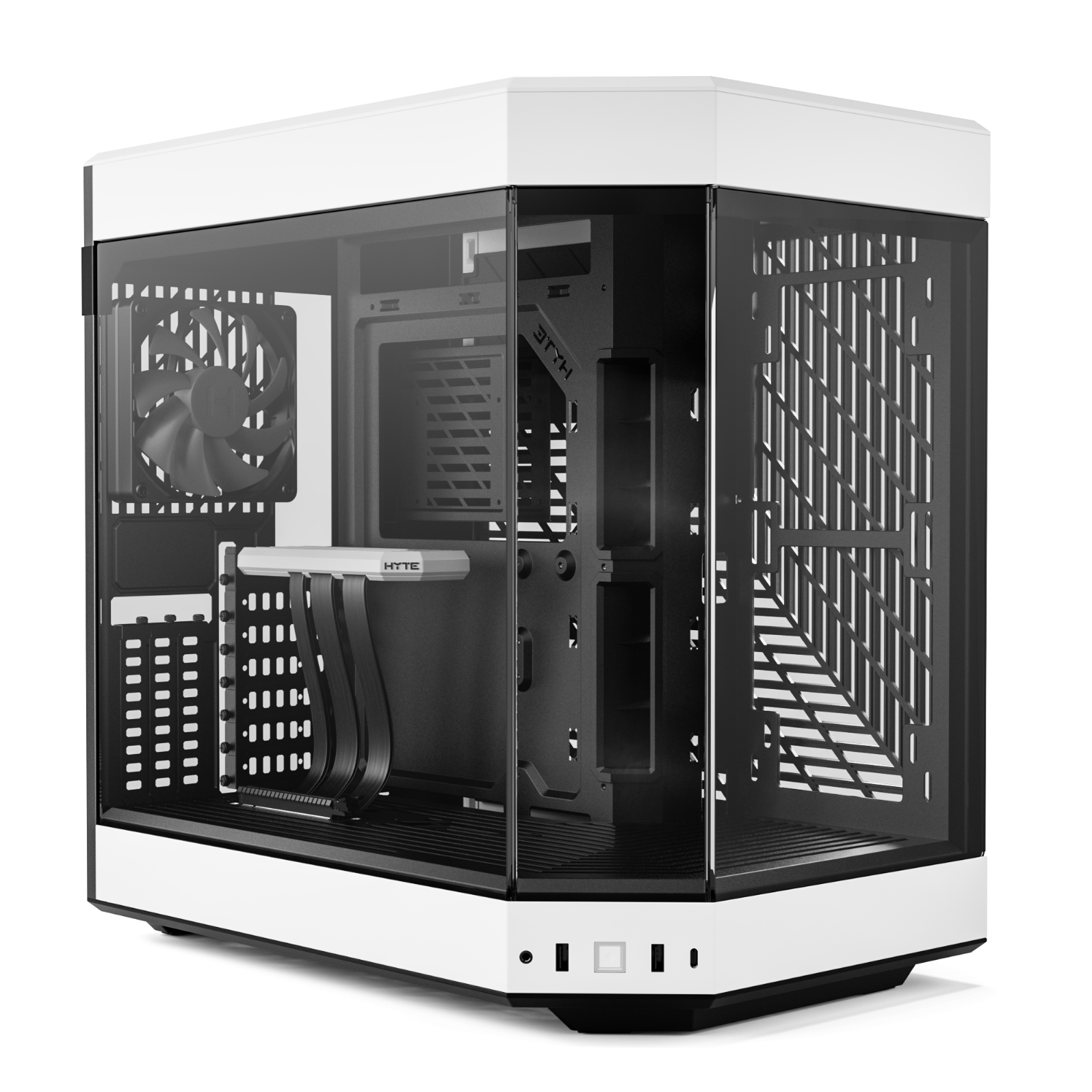

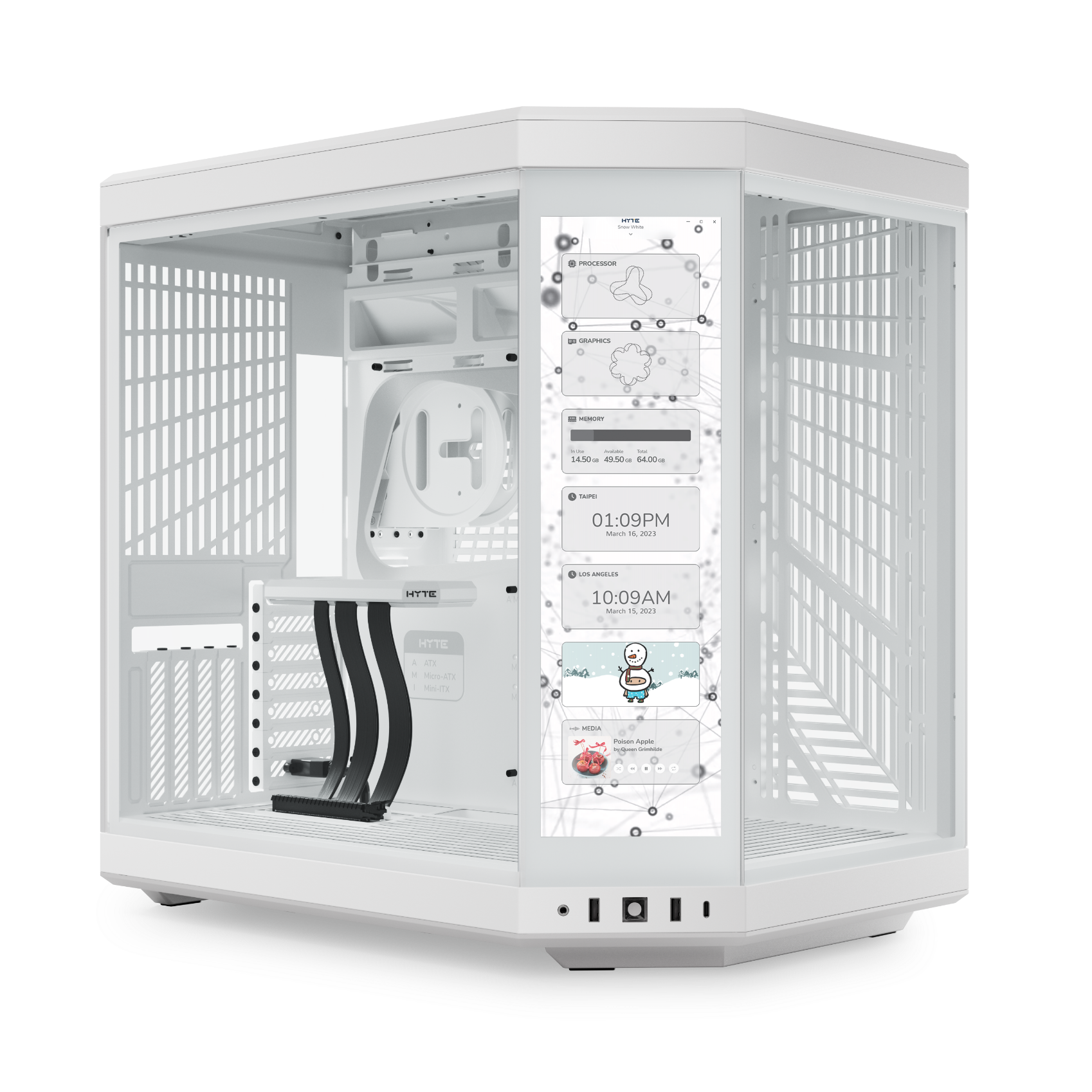

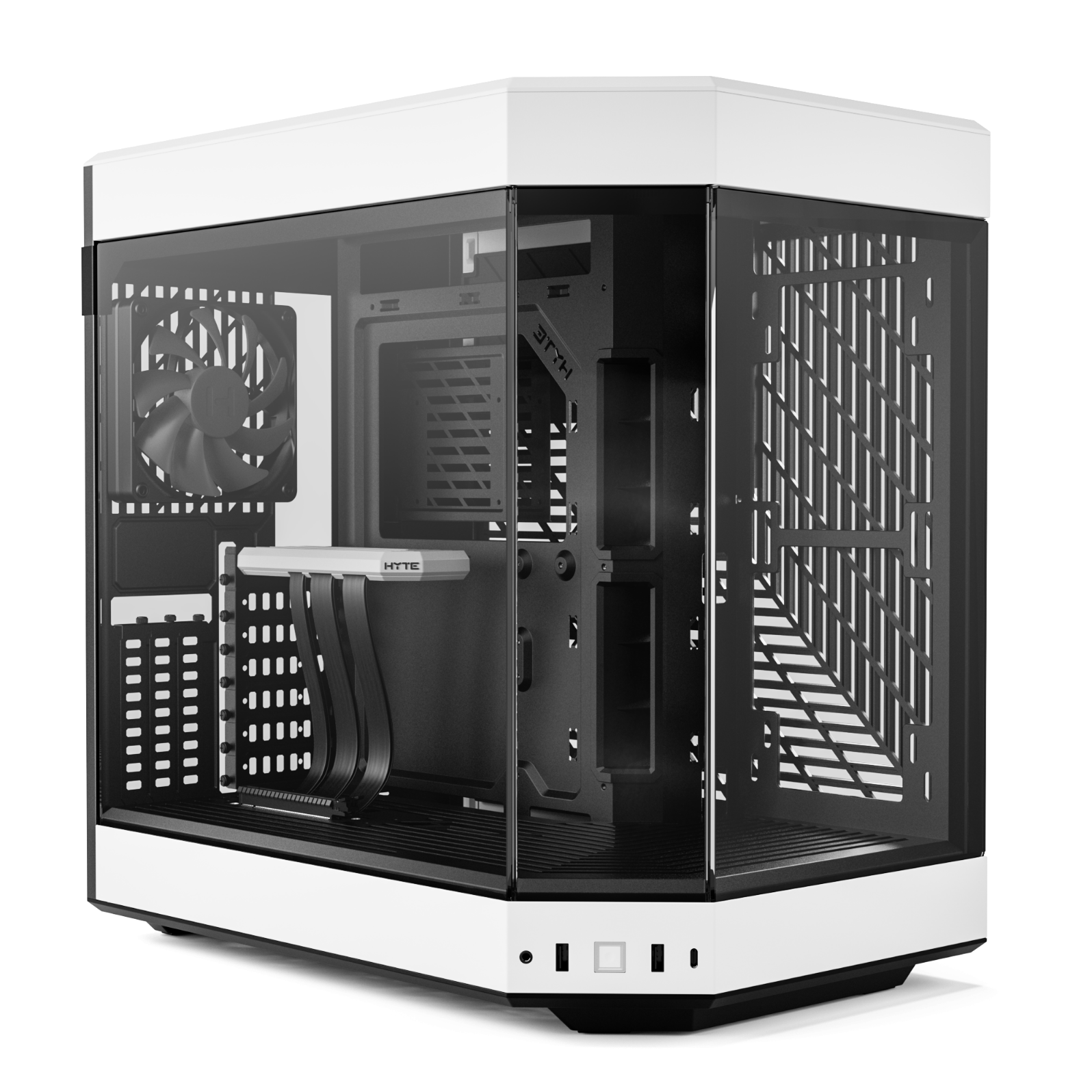

How it Compares to the Y60
Y70 Touch Infinite features superior air-cooled GPU thermal performance when compared to the Y60 due to its larger clearance between the GPU fans and side glass.
All thermal tests were performed using a 240mm top exhaust radiator, 2x120mm side intake fans, 2x120mm bottom intake fans, and 1x120mm rear exhaust fan, all set to 1500 RPM. With Y60 side glass installed, some cards experienced thermal throttling. Results are marked with an asterisk.
Configuration and GPU Temperature
Card | Open Air | Y70 Touch Infinite | Y60 |
---|---|---|---|
Gigabyte RTX 4090 Gaming | 69C @ 82% Fan | 72C @ 84% Fan | 90C* @ 100% Fan |
Asus RTX 3070Ti TUF | 63C @ 100% Fan | 64C @ 100% Fan | 69C @ 100% Fan |
Y70 Touch Infinite vs Y60 + LCD DIY Kit
Y70 Touch Infinite | Y60 | |
---|---|---|
MSRP | $379.99 | $199.99 + $150 |
Exterior Dimensions | 470 x 320 x 470 mm | 456 x 285 x 462 mm |
Volume (L) | 70.7 | 60.0 |
Motherboard Sizes | ITX, mATX, ATX, EATX* | ITX, mATX, ATX, EATX* |
Expansion Slots | 7 half + 4 full height | 7 half + 3 full height |
Riser Cable Included | Yes, PCIE 4.0 x 16 | Yes, PCIE 4.0 x 16 |
I/O | 2x USB-A 3.2 Gen 1, 1x USB-C 3.2 Gen 2 | 2x USB-A 3.2 Gen 1, 1x USB-C 3.2 Gen 2 |
Top Fans | 3x 120 mm / 2x 140 mm | 3x 120 mm / 2x 140 mm |
Top Radiator | 120-360, 140-280 @ 68 mm thick | 120-360 @ 32 mm thick |
Rear Fans | 1x 120/140 mm | 1x 120 mm (included) |
Rear Radiator | 1x 120/140 mm | 1x 120 mm |
Bottom Fans | 3x 120 mm / 2x 140 mm @ 32 mm thick | 2x 120/140 mm (2x 120 included) |
Side Fans | 3x 120 mm / 2x 140 mm | 2x 120/140 mm |
Side Radiator | 120-360, 140-280 @ 125 mm thick | 120-240, 140-280 @ 125 mm thick |
Max Video Card Length | 390 mm | 375 mm |
Max Video Card Thickness | 105 mm | 75 mm |
Max CPU Cooler Height | 180 mm | 160 mm |
LCD Screen | 14.5” 688 x 2560 (2.5K) Capacitive Touchscreen (183 PPI) | Optional 12.6” 515 x 1920 LCD Panel (157 PPI) |
