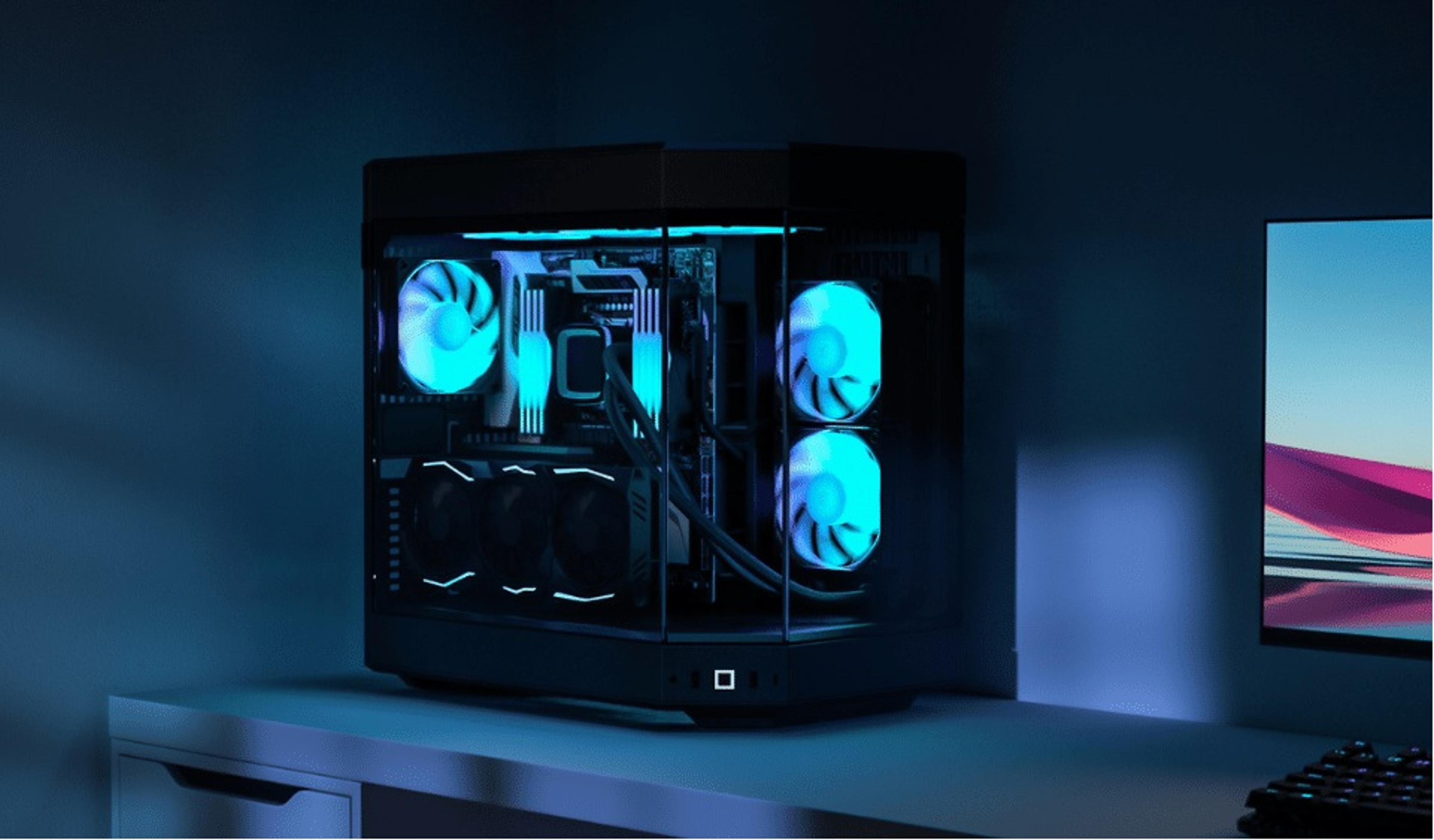

Meet the Y60: Our ATX Case Gives Your GPU Center Stage
Where the REVOLT 3’s goal was to celebrate the ITX case’s portability, we wanted the Y60 to showcase the desktop PC as a part of your space you’ll love to design and display.
The Y60 is a mid-tower PC chassis, designed to showcase your GPU in exclusively vertical orientation. We built in a PCIE 4.0 cable for that very reason.
As GPUs have gotten beefier (and let’s face it, more expensive), they’ve also become the star of PC builds. You worked hard to get that GPU, so why wouldn’t you want to show it off?
With vertical orientation can come some cooling challenges; don’t worry, we thought of that too. Our “cold floor” design uses lateral vents to draw air up from the bottom of your chassis, removing hot spots and allowing more airflow.
Single tempered glass panels are everywhere - but why limit your view to just one angle? We created a wrap-around glass profile in the Y60, elevating your PC into a functional art piece that can be admired and photographed from nearly any view. Oh, and it’s removable, in case you want to take your liquid cooling mods WAY outside the box ;)
The beveled edge also serves as a bottom-front I/O, keeping your desk setup clean and functional.
A Better Way to Build
The vision for the Y60 was to make a chassis that displays everything you want, and hides everything else. You’ve already blown us away with some incredible REVOLT 3 builds and mods. We can’t wait to see the amazing PCs that get built in here!
- Type - Dual Chamber Mid-Tower ATX Case
- Volume - 60L
- Case Dimensions - 456mm x 285mm x 462mm
- Case Materials - ABS, Steel, Tempered Glass
- Color Options
- Motherboard Support - ITX, mATX, ATX, EATX
- Power Supply - ATX up to 235mm in length
- GPU Max Dimensions - 375mm length, 75mm height (60mm height or less recommended for best cooling)
- Fan Support
- Side: 2x 120mm/140mm
- Top: 3x 120mm
- Rear: 1x 120mm (1x 120mm, 1300 RPM included)
- Bottom: 2x 120mm/140mm (2x 120mm, 1300 RPM included)
- Radiator Support
- Side: 120, 140, 240, 280mm up to 150mm thick
- Top: 120, 240, 360mm up to 28mm thick
- Rear: 120mm
- CPU Cooler Height - 160 mm
- Storage - 2x 3.5" HDD or 4x 2.5" SSD
- Expansion Slots - 3 + 6 half-height
- Front USB 3.0 - 2
- Front USB 3.2 Type-C - 1
- Audio/Mic Jack - 1
- Dust Filters - Bottom, Side, Top
- RGB Lighting - None
